Specifications

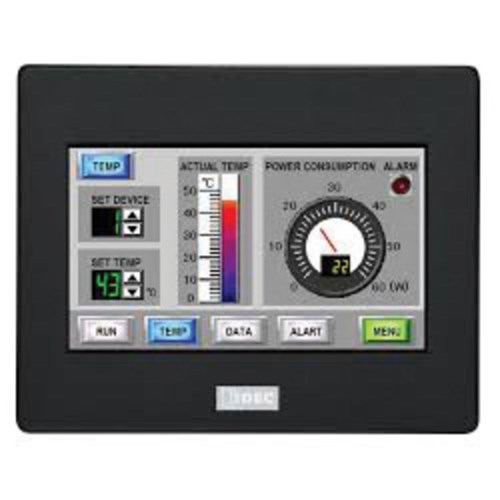

Product Type	Operator Interface
Brand	IDEC
Series	HG series
Power Consumption	8W
Rated Power	8 W
Rated Voltage	12-24 VDC
Supply Voltage	12-24V DC
Memory Interface	COM, LAN, USB1, USB2
Sunlight Readable	Yes (800 cd/m²)
Display	TFT Colour LCD
Display Colour	65536 Colors
Housing Colour	Black
Mounting Method	Panel mount
Depth	31.8 mm
Height	102 mm
Width	128 mm
Panel Cut-Out Size	118 x 92 mm
Display Size	4.3-inch
Storage Temperature	-20 to 70°C
Operating Temperature	-20 to 55°C
IP Rating	IP66F/IP67F
Ethernet Port Speed	10/100 Mbit
Ethernet Ports	1
Serial Ports	2
USB Port	2
Supported Ethernet Protocols	Modbus TCP (Client/Server), FTP Server, Ethernet/IP, and various manufacturer-specific drivers
Supported Serial Protocols	Modbus RTU
Touch Type	Analog resistive membrane
Hazardous Location Ratings	Class I Division 2
Compliance Standards	UL 508
