Specifications

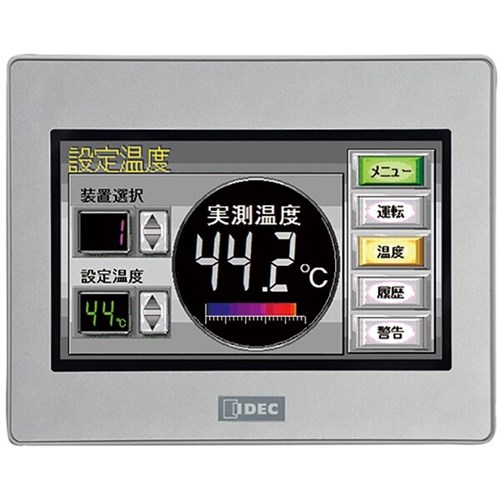

Product Type	Operator Interface
Brand	IDEC
Series	HG series
Power Consumption	8W
Rated Power	8 W
Rated Voltage	10.2-28.8 VDC
Supply Voltage	12-24V DC
Response Time	147 ms
Sunlight Readable	Yes (800 cd/m²)
Colour	Silver
Display	TFT Colour LCD
Display Colour	65536 Colors
Mounting Method	Panel mount
Vibration Resistance acc. To IEC/EN 60068-2-6	5-8.4 Hz
Viewing Angle	Left/Right: 70°, Top: 60°, Bottom: 65°
Depth	31.8 mm
Height	102 mm
Weight	300 g
Width	128 mm
Panel Cut-Out Size	118 x 92 mm
Display Size	4.3-inch
Humidity	10-90%
Storage Temperature	-20 to 70°C
Operating Temperature	-20 to 55°C
IP Rating	IP66F/IP67F
Ethernet Port Speed	10/100 Mbit
Ethernet Ports	1
Serial Ports	2
USB Port	2
Supported Ethernet Protocols	Modbus TCP (Client/Server), FTP Server, Ethernet/IP, and various manufacturer-specific drivers
Supported Serial Protocols	Modbus RTU
Touch Type	Analog resistive membrane
Hazardous Location Ratings	Class I Division 2
Compliance Standards	UL 508
