Specifications

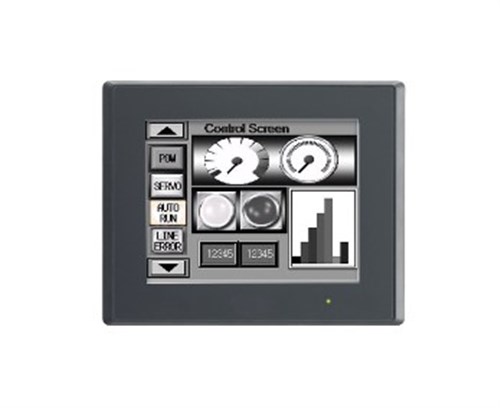

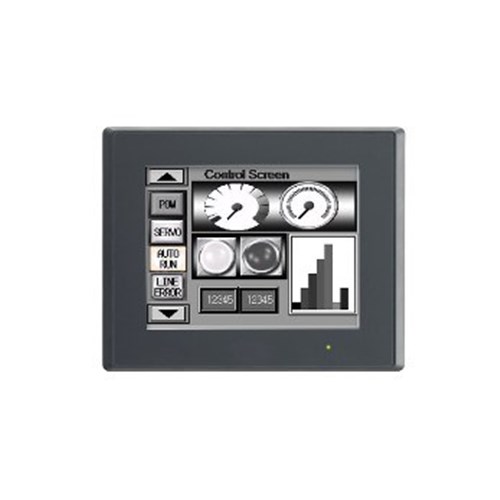

Product Type	Operator Interface
Brand	IDEC
Series	HG series
Development Software	Automation Organizer
Power Consumption	8W
Supply Voltage	12-24V DC
Terminal Type	Removable 19-pin connector
Sunlight Readable	Yes (1100 cd/m² )
Display Colour	Monochrome (16 shades)
Mounting Method	Panel mount
Depth	40.9 mm
Height	134.7 mm
Width	167.2 mm
Panel Cut-Out Size	153.0 mm x 121.0 mm
Display Size	5.7-inch
Storage Temperature	-20 to 70°C
Operating Temperature	-20 to 60°C
IP Rating	IP66F
Ethernet Port Speed	10/100 Mbit
Ethernet Ports	1
Expandable Communications	O/I Link Communication
Fieldbus Interface	Ethernet, Serial, O/I Link
Serial Ports	2
USB Port	2
Supported Ethernet Protocols	IDEC Web Server, Allen Bradley EtherNet/IP, Modbus TCP/IP, FTP, Email, BACnet/IP
Supported Serial Protocols	IDEC, Modbus RTU, and major PLC brands (Allen Bradley, Mitsubishi, Siemens, etc.)
Touch Type	Analog resistive membrane
Hazardous Location Ratings	Class I Division 2
Compliance Standards	cUL, UL, Type 4X, Type 13
