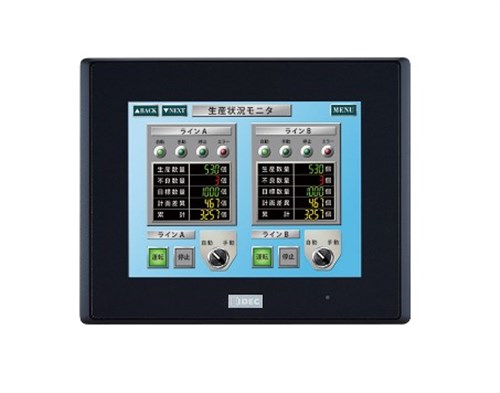

IDEC HG2G-V5FT22TF-B Operator Interface HMI 5.7in TFT Colour LCD 20.4-28.8VDC

Product Code: HG2G-V5FT22TF-B

1

Specifications

Product Type	Touchscreen HMI
Brand	IDEC
Series	HG series
Development Software	Automation Organizer
Power Consumption	18 W max
Supply Voltage	24V DC
Display Colour	TFT Color LCD (65,536 colors)
Mounting Method	Panel
Depth	54.4 mm
Height	134.7 mm
Width	167.2 mm
Panel Cut-Out Size	121mm x 153 mm
Display Size	5.7 inch
Storage Temperature	-20 to +70°C
Operating Temperature	-20 to +60°C
IP Rating	IP66F / IP67F
Ethernet Ports	1
Serial Ports	2
USB Port	2
Supported Serial Protocols	RS-232, RS-485, RS-422
Touch Type	Analog resistive
Hazardous Location Ratings	Class I Div 2
Compliance Standards	UL61010-1, UL61010-2-201, UL12.12.01 CSA C22.2 No.61010-1-12 CSA C22.2 No.61010-2-201 CSA C22.2 No.213
