Specifications

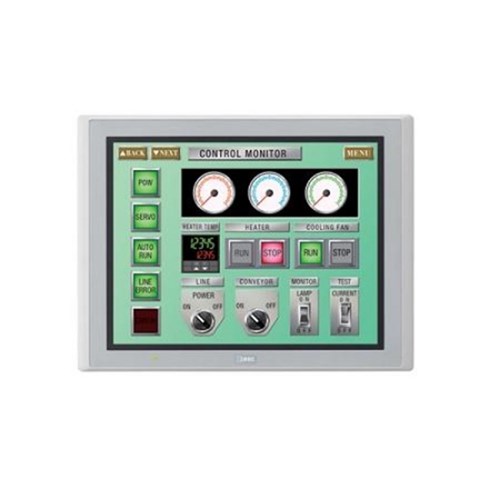

Product Type	Operator Interface
Brand	IDEC
Series	HG series
Development Software	Automation Organizer Software Suite (Includes WindLDR (for PLCs), WindO/I-NV2 (for HMIs),WindO/INV4 (new HG2G) and WindCFG (system configuration tool)
Power Consumption	25 W
Supply Voltage	24V DC
Terminal Type	Screw Terminals
Mounting Method	Panel Mounting
Depth	52.7 mm
Height	212 mm
Width	270 mm
Panel Cut-Out Size	200 H mm x 258 W mm
Storage Temperature	-20 to +70°C (no freezing)
Operating Temperature	-20 to +60°C(no freezing)
IP Rating	IP66F
Ethernet Port Speed	10 Mbps/ 100 Mbps
Ethernet Ports	RJ-45
Expandable Communications	MicroSmart I/O module interface
Serial Ports	2 (RS232, RS485, RS422)
USB Port	1 Type A/1 MiniB
Hazardous Location Ratings	Type 4X, 12, and 13Class I Div 2
Compliance Standards	UL61010-1, UL61010-2-201, UL12.12.01CSA C22.2 No.61010-1-12CSA C22.2 No.61010-2-201CSA C22.2 No.214
Sunlight Readable	No
Touch Type	Resistive analog
Display Size	10.4 inch
Display Colour	Color
