Specifications

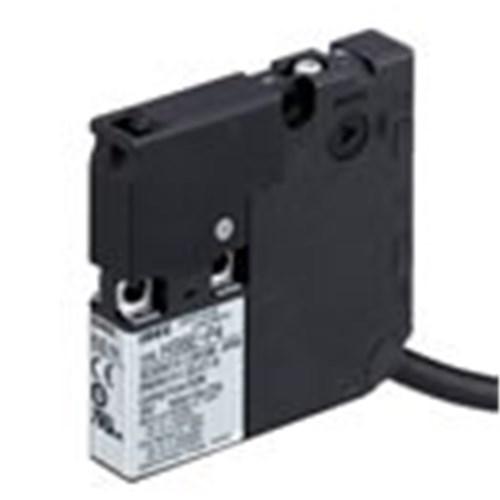

Product Type	Subminiature Interlock Switch
Brand	IDEC
Series	HS6E
Cable Length	3 m
Colour/Finish	Green
Contact Configuration	1NC
Degree of Protection	IP67
Mechanical Life	1000000 Cycles
Operational Temperature	-40 to 80 deg C
Rated Insulation Voltage	300 V
Standards and Approvals	ISO14119, IEC60947-5-1, EN60947-5-1 (TUV approved), GS-ET-15 (TUVapproved), UL508 (UL-listed), CSA C22.2 No. 14 (c-UL-listed), GB/T14048.5 (CCC approved), KS C IEC60947-5-1/S1-G-1/S2-E-4 (KOSHA approved)
