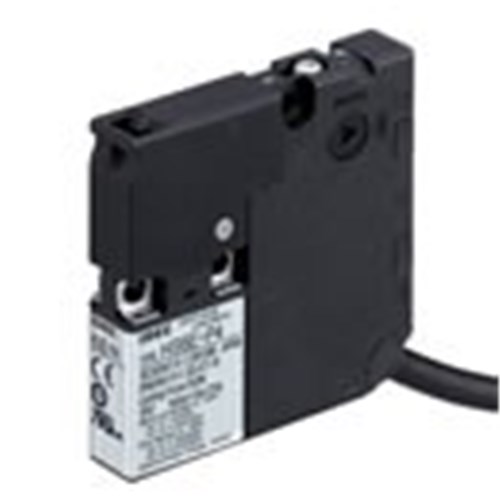

IDEC HS6E-N44B03-G Subminiature Interlock Switch 1NC

Product Code: HS6E-N44B03-G

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Solenoid Interlock Switch
Brand IDEC
Series HS6E
No. of N/C Contacts 3
No. of N/O Contacts 2
Rated Current 110 mA
Rated Voltage 24 V DC
Actuator Type Separate HS9Z actuator
Cable Entry Integrated cable (3 m)
Guard Locking Force 500 N
Depth 15 mm
Height 75 mm
Width 41.8 mm
Operating Temperature -25 to 50 °C
IP Rating IP67

Documents

IPD Product Catalogue V17
IDEC Brochure
Instructions

Certificate

Certificate of Compliance
EU Declaration of Conformity
