Specifications

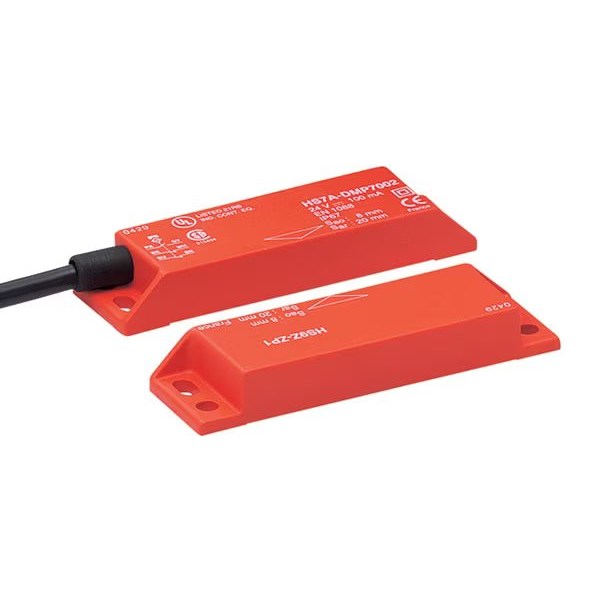

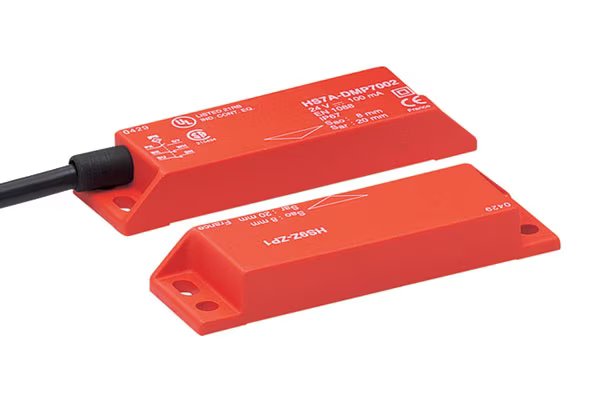

Product Type	Coded magnetic safety switch
Brand	IDEC
Series	HS7A-DMP
Cable Length	2 m
No. of N/C Contacts	1
No. of N/O Contacts	2
Rated Current	100 mA
Rated Voltage	24 V DC
Actuator Type	HS9Z-ZP1
Housing Colour	Red
Housing Material	PBT
Depth	88 mm
Height	13 mm
Weight	180 g
Width	25 mm
Operating Temperature	-25 to +85 °C (no freezing)
IP Rating	IP67
