Specifications

Product Type	Illuminated Buzzer
Brand	IDEC
Series	HW
Rated Current	Illuminated: 18 mA (24 VDC), 8 mA (12 VDC)Non Illuminated(Steady sound): 9 mA (24 VDC), 4 mA (12 VDC)(Intermittent sound): 7 mA (24 VDC), 3 mA (12 VDC)
Rated Voltage	12 to 24 VDC
Terminal Type	Push in terminal
Body Colour	Red
Functionality	Pulsation
Lamp Colour	RED
Loudness	90 dB min. at 0.1 m (24 VDC)70 dB min. at 1 m (24 VDC, equivalent value)84 dB min. at 0.1 m (12 VDC)64 dB min. at 1 m (12 VDC, equivalent value)
Sound Frequency	2,200 to 2,450 Hz
Mounting Hole Diameter (mm)	22.4 mm
IP Rating	IP54
Ambient Temperature	–20 to +50 °C

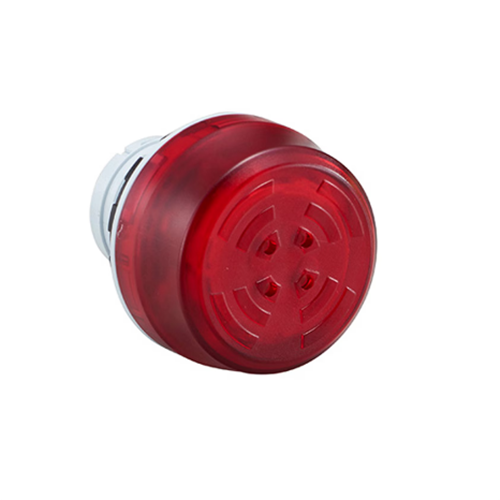

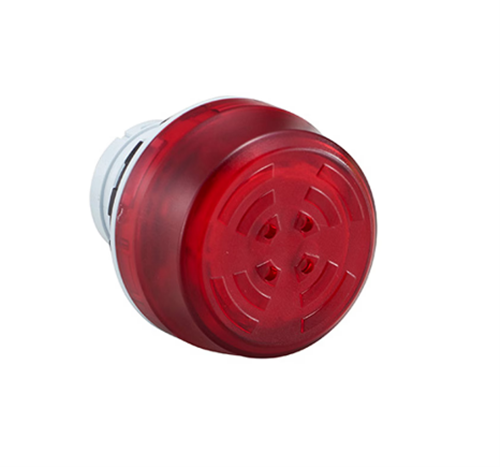

IDEC HW1Z-P1F2PQ4R Buzzer Unit Illuminated 24VDC Red 18mA
