Specifications

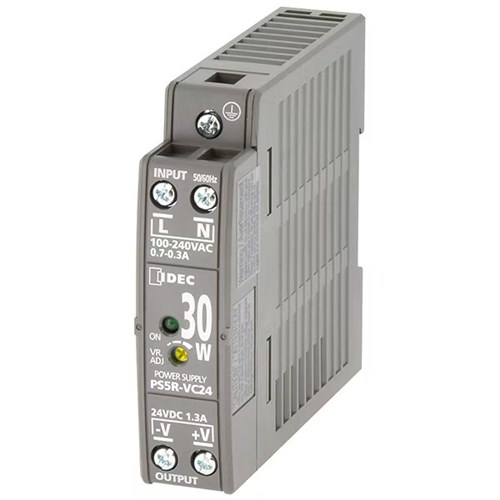

Product Type	Power Supply
Brand	IDEC
Series	PS5R - V
Electrical Endurance	8 Years
Input Voltage DC	100-240V AC
Output Power	30W
Output Voltage - Nominal	12V DC
Protection	1.05
Efficiency	100V AC: 83%
Rated Current	0.7 A, 0.3 A
Rated Frequency	50/60 Hz
Rated Power	30 W
Rated Voltage	100-240 VAC, 85-264 VDC
Terminal Type	Spring-up terminals
Mounting Style	DIN rail
Mounting Type	DIN Rail
Shock Resistance acc. To IEC/EN 60068-2-27	300 m/sq-sec
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55Hz
Depth	95 mm
Height	22.5 mm
Weight	150 g
Width	90 mm
Approvals / Conformity	UL508 (Listing), UL1310 Class 2, ANSI/ISA-12.12.01 CSA C22.2 No. 107.1, 213, 223 EN60950-1, EN50178
Humidity	20-90%
Operating Temperature	-25 to +70°C
IP Rating	IP20
Standards and Approvals	cUL us, CE, UL us, CE, UL 508, ANSI/ISA 12.12.01, CSA C22.2 No.107.1, 213, 223
