Specifications

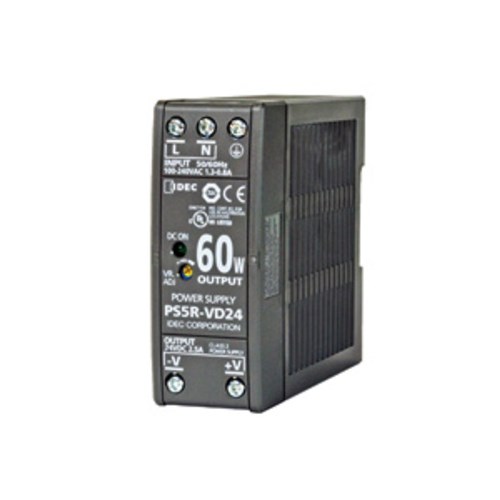

Product Type	Power Supply
Brand	IDEC
Series	PS5R - V
Input Voltage DC	100-240V AC
Output Power	60W
Output Voltage - Nominal	24V DC
Efficiency	100V AC: 86%
Rated Current	1300-800 mA
Rated Frequency	50/60 Hz
Rated Power	60 W
Rated Voltage	85-264 VAC, 24 VDC
Terminal Type	Spring-up terminals
Mounting Style	DIN rail
Mounting Type	DIN Rail
Depth	108 mm
Height	36 mm
Weight	260 g
Width	95 mm
Approvals / Conformity	UL508 (Listing), UL1310 Class 2, ANSI/ISA-12.12.01 CSA C22.2 No. 107.1, 213, 223 EN60950-1, EN50178
Operating Temperature	-25 to +70°C
