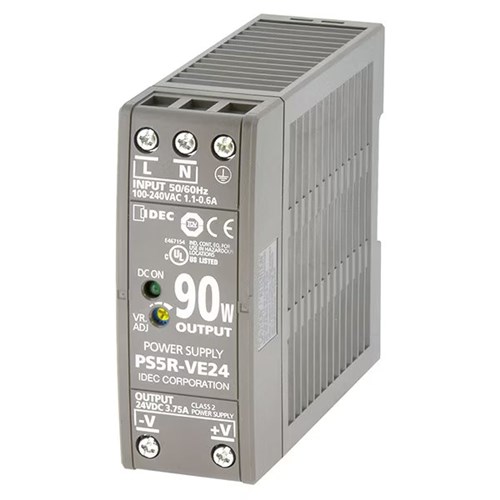

IDEC PS5R-VE24 Switching Power Supply 100-240VAC 24VDC 1.1A 0.6A 90 Watt DIN Rail Mount IP20

Product Code: PS5R-VE24

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Power Supply
Brand IDEC
Series PS5R
Degree of Protection IP20
Depth 108 mm
Efficiency 89%
Electrical Life 8 Years
Height 95 mm
Humidity 20-90%
Mounting Type DIN Rail
Operational Temperature -25 to 65 deg C
Overcurrent Protection 101%
Rated Current 1.1 A, 0.6 A
Rated Frequency 50/60 Hz
Rated Power 90 W
Rated Voltage 100-240 VAC, 24 VDC
Shock Resistance 300 m/sq-sec
Standards and Approvals CE, cUL, cULus
Vibration Resistance 10-55Hz
Weight 310 g
Width 36 mm

Documents

IPD Product Catalogue V17
IDEC Brochure
IDEC Datasheet
Instructions

Certificate

Certificate of Compliance
EU Declaration of Conformity
