Specifications

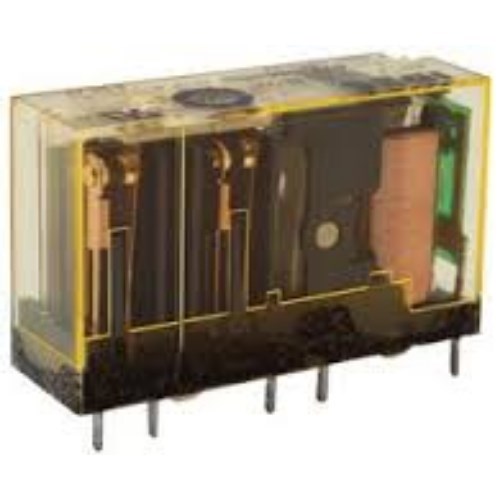

Product Type	Force-guided relay
Brand	IDEC
Series	RF1V
Actuating Voltage	24 V DC
No. of N/C Contacts	2
No. of N/O Contacts	2
Contact Configuration	2NO+2NC
Electrical Connection	PCB terminal
Rated Current	6 A
Rated Voltage	30 V DC, 250 V AC
Terminal Type	PCB
Response Time	200 ms
Timer Relay Type	RF1V 4PDT Relay with LED indicator
Change-Over Contacts	0
Contact Material	AgSnO2 (Au flashed)
Mounting Type	Panel, DIN rail or PCB
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	40 mm
Height	27.5 mm
Width	13 mm
Operating Temperature	-40 to 85 degC
Standards and Approvals	CSA C22.2 14, CSA File 253350, UL Recognized File E55996, UL508
