Specifications

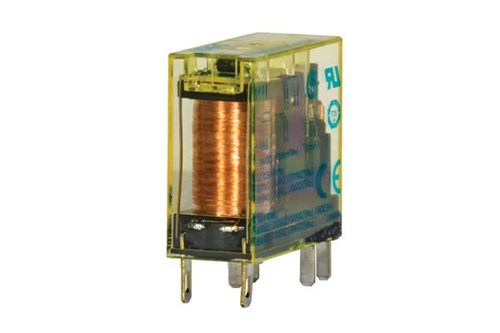

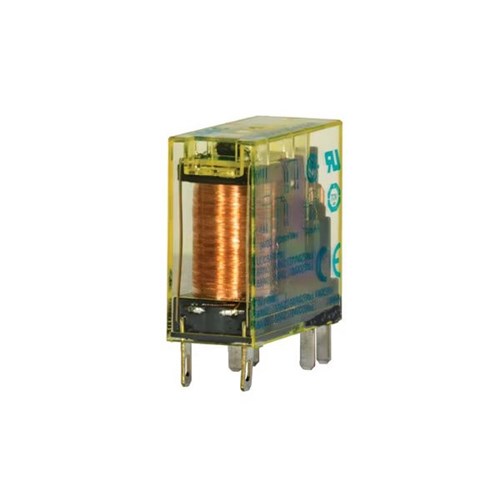

Product Type	Force-guided relay
Brand	IDEC
Series	RF2
Actuating Voltage	24 V DC
Electrical Endurance	100000 Operations
No. of N/C Contacts	1
No. of N/O Contacts	1
Contact Configuration	1NO+1NC
Electrical Connection	Plug-in terminal
Rated Current	6 A
Rated Power	0.7 W
Response Time	1000 ms
Nominal Current	29 mA
Change-Over Contacts	0
Mechanical Durability	10000000 Operations
Contact Material	AgNi + Au-clad
Mounting Type	Socket mount
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	12.7 mm
Height	28.4 mm
Weight	18 g
Width	28 mm
Pollution Degree	2
Humidity	5-85%
Operating Temperature	-40 to 70 degC
IP Rating	RTII (Flux-Tight), RTIII (Sealed)
Standards and Approvals	CE, CSA C22.2 14 File LR35144, UL60947-4-1a UL/Recognition File E55996
