Specifications

Product Type	Power Relay
Brand	IDEC
Series	RJ
Actuating Voltage	192 V AC
Electrical Endurance	200000 Operations
No. of N/C Contacts	1
No. of N/O Contacts	1
Timing Range	15 ms
Contact Configuration	SPDT
Electrical Connection	Blade
Rated Current	12 A
Terminal Type	Plug-In
Response Time	1000 ms

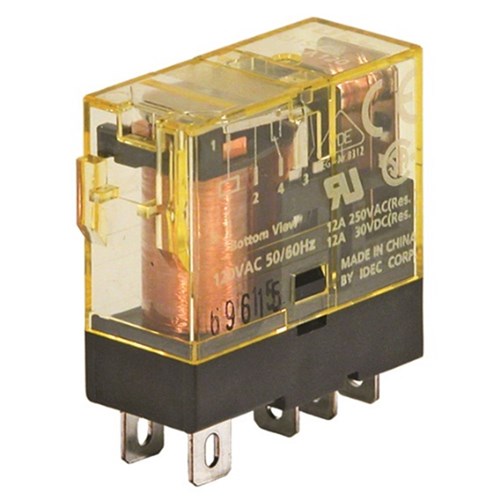

Timer Relay Type	RJ1S 1PDT Relay with LED indicator
Change-Over Contacts	SPDT
Mechanical Durability	3000000 Operations
With Base	SJ1S-07LW
Rated Voltage (Coil)	240 V AC
Contact Material	AgNi
Mounting Type	With Socket (DIN Rail/PCB)
Depth	28.8 mm
Height	12.7 mm
Weight	19 g
Width	27 mm
Humidity	5-85%
Operating Temperature	–40 to +70°C (no freezing)
IP Rating	IP40
Standards and Approvals	CE, CSA, Lloyd Register, RoHS, VDE
