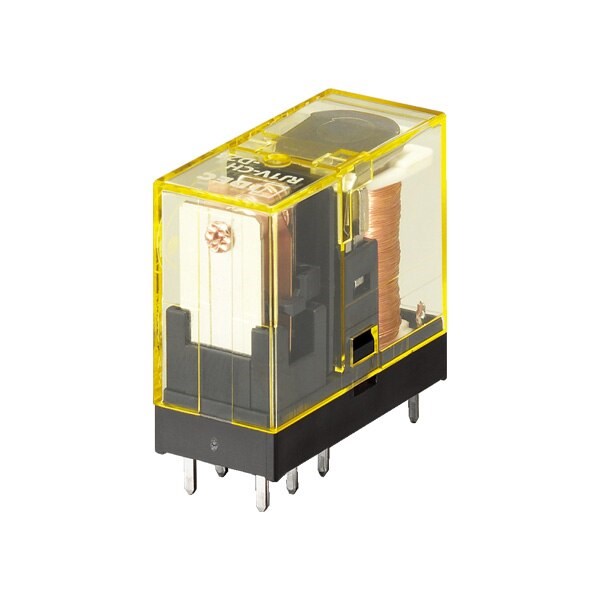

Specifications

Product Type	PCB Relay
Brand	IDEC
Series	RJ
Actuating Voltage	192 V AC
Electrical Endurance	200000 Operations
No. of N/C Contacts	0
No. of N/O Contacts	1
Timing Range	15 ms
Contact Configuration	NO SPDT
Electrical Connection	PCB Pin Terminal
Rated Current	16 A
Rated Voltage	240 V AC
Terminal Type	PCB
Response Time	1000 ms
Change-Over Contacts	SPST-NO
Mechanical Durability	3000000 Operations
Contact Material	Ag-Sn-In
Model	High Capacity
Mounting Type	PCB
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	29 mm
Height	29.8 mm
Weight	16 g
Width	13 mm
Humidity	5-85%
Operating Temperature	–40 to +70°C (no freezing)
IP Rating	IP40
Standards and Approvals	CE, CSA C22.2 14 1608322, EN61810-1, File LR35144, RoHS, UL File E55996, UL508, VDE
