Specifications

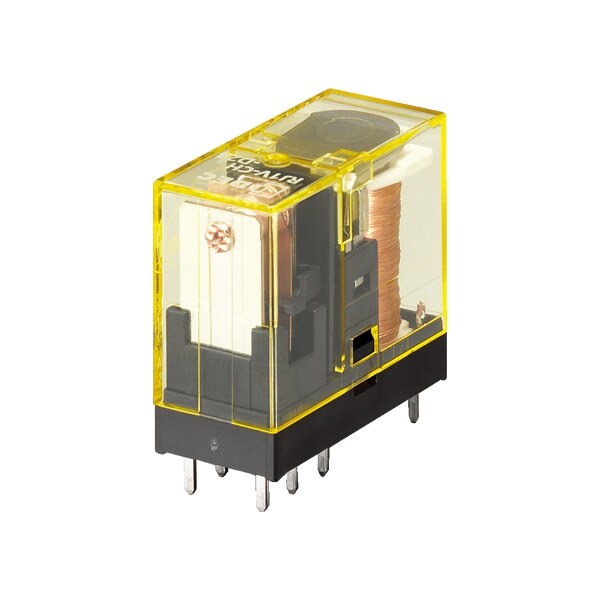

Product Type	Slim General Purpose Relay
Brand	IDEC
Coil Voltage	12 VDC
Contact Configuration	NO SPDT
Contact Material	Silver Nickel Alloy
Contact Resistance	50 MOhm
Degree of Protection	IP40
Electrical Life	1000000 Operations
Humidity	5-85%
Mechanical Life	50000000 Operations
Model	High Capacity
Number of Poles	1
Operating Time	15 ms
Operational Temperature	-40 to 70 deg C
Rated Current	16 A
Shock Resistance	1000 ms
Standards and Approvals	CE, CSA C22.2 14 1608322, EN61810-1, File LR35144, RoHS, UL File E55996, UL508, VDE
Terminal Type	PCB
Vibration Resistance	10-55 Hz
Weight	16 g
