Specifications

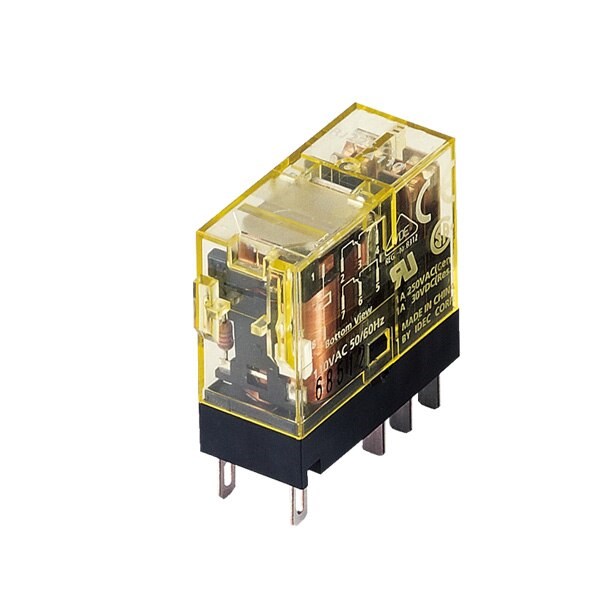

Product Type	Slim General Purpose Relay
Brand	IDEC
Coil Voltage	6 VDC
Contact Configuration	DPDT
Contact Material	AgNi
Contact Resistance	50 MOhm
Degree of Protection	IP40
Electrical Life	200000 Operations
Humidity	5-85%
Mechanical Life	2000000 Operations
Model	Bifurcated Contacts (With LED Indicator)
Number of Poles	2
Operating Time	15 ms
Operational Temperature	-40 to 70 deg C
Shock Resistance	1000 ms
Standards and Approvals	CE, CSA C22.2 14 1608322, EN61810-1, File LR35144, RoHS, UL File E55996, UL508, VDE
Terminal Type	Blade
Vibration Resistance	10-55 Hz
Weight	19 g
