Specifications

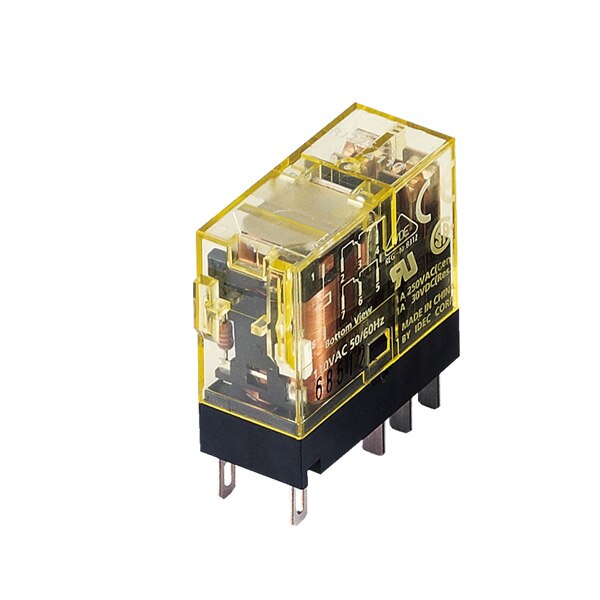

Product Type	Slim General Purpose Relay
Brand	IDEC
Coil Voltage	24 VDC
Contact Configuration	DPDT
Contact Material	AgNi
Contact Resistance	50 MOhm
Degree of Protection	IP40
Electrical Life	200000 Operations
Humidity	5-85%
Mechanical Life	2000000 Operations
Model	Bifurcated Contacts Diode (With LED Indicator)
Number of Poles	2
Operating Time	15 ms
Operational Temperature	-40 to 70 deg C
Shock Resistance	1000 ms
Standards and Approvals	CE, CSA C22.2 14 1608322, EN61810-1, File LR35144, RoHS, UL File E55996, UL508, VDE
Terminal Type	Blade
Vibration Resistance	10-55 Hz
Weight	19 g
