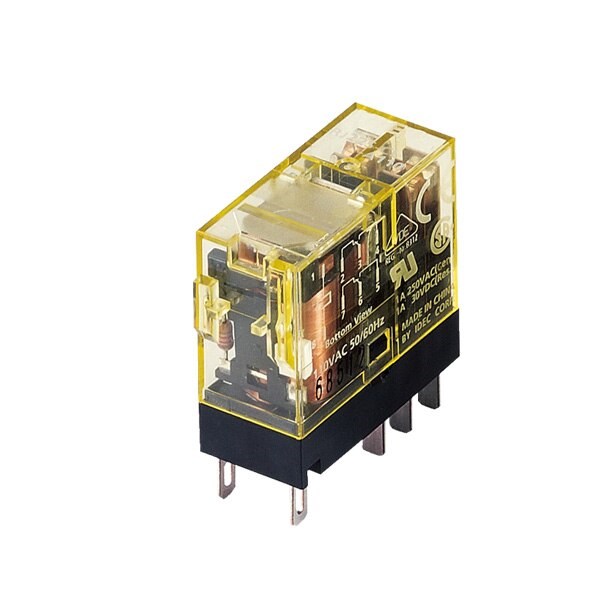

Specifications

Product Type	PCB Relay
Brand	IDEC
Series	RJ
Actuating Voltage	19.2 V AC
Electrical Endurance	1000000 Operations
No. of N/C Contacts	2
No. of N/O Contacts	2
Timing Range	15 ms
Contact Configuration	DPDT
Electrical Connection	PCB Pin Terminal
Rated Current	1 A
Rated Voltage	24 V AC
Terminal Type	PCB
Response Time	1000 ms
Change-Over Contacts	DPDT
Mechanical Durability	10000000 Operations
Contact Material	Ag-Ni+Au
Model	Bifurcated Contacts
Mounting Type	PCB
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	29 mm
Height	29.8 mm
Weight	17 g
Width	13 mm
Humidity	5-85%
Operating Temperature	–40 to +70°C (no freezing)
Standards and Approvals	CE, CSA C22.2 14 1608322, EN61810-1, File LR35144, RoHS, UL File E55996, UL508, VDE
