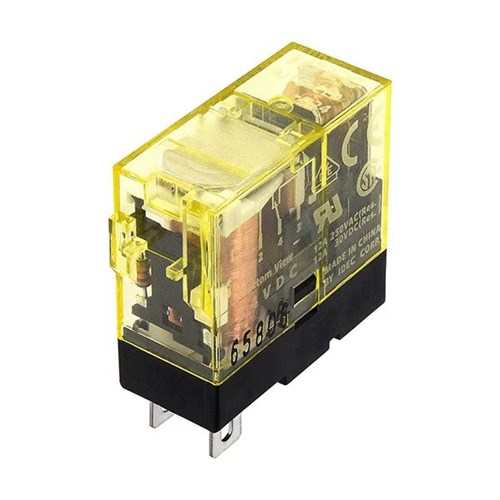

IDEC RJ2S-CL-A12 Slim General Purpose Relay DPDT 8A Blade Terminal

Product Code: RJ2S-CL-A12

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Slim General Purpose Relay
Brand IDEC
Coil Voltage 12 VAC
Contact Configuration DPDT
Contact Material Silver Nickel Alloy
Contact Resistance 50 MOhm
Degree of Protection IP40
Electrical Life 200000 Operations
Humidity 5-85%
Mechanical Life 30000000 Operations
Model With LED
Number of Poles 2
Operating Time 15 ms
Operational Temperature -40 to 70 deg C
Rated Current 8 A
Shock Resistance 1000 ms
Terminal Type Blade
Vibration Resistance 10-55 Hz
Weight 19 g

Documents

IPD Product Catalogue V17
IDEC Brochure
IDEC Catalogue

Certificate

CSA Certification
EU Declaration of Conformity
