Specifications

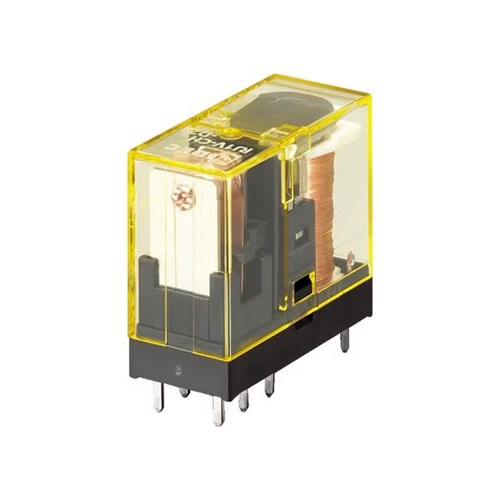

Product Type	Slim General Purpose Relay
Brand	IDEC
Coil Voltage	240 VAC
Contact Configuration	DPDT
Contact Material	Silver Nickel Alloy
Contact Resistance	50 MOhm
Degree of Protection	IP40
Electrical Life	200000 Operations
Humidity	5-85%
Mechanical Life	30000000 Operations
Model	Standard
Number of Poles	2
Operating Time	15 ms
Operational Temperature	-40 to 70 deg C
Rated Current	8 A
Shock Resistance	1000 ms
Standards and Approvals	CE, CSA C22.2 14 1608322, EN61810-1, File LR35144, RoHS, UL File E55996, UL508, VDE
Terminal Type	PCB
Vibration Resistance	10-55 Hz
Weight	17 g
