Specifications

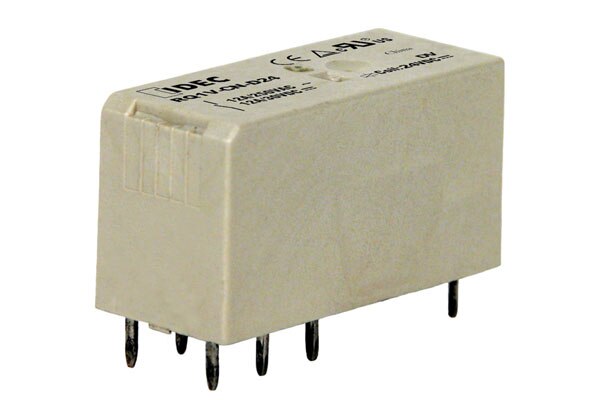

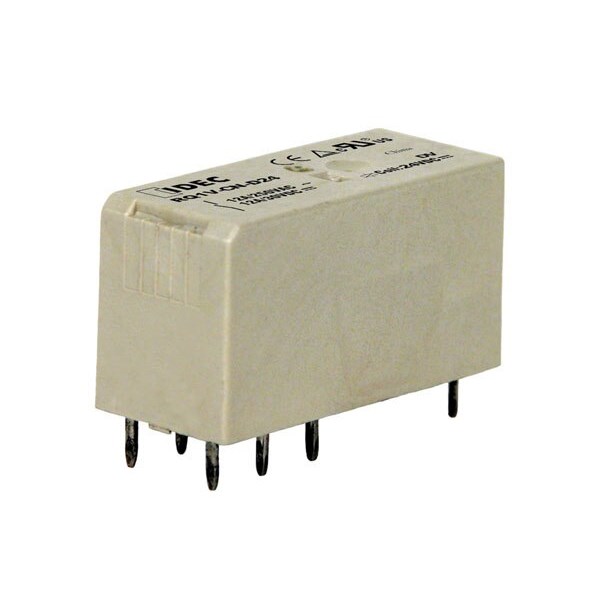

Product Type	PCB Relay
Brand	IDEC
Series	RQ
Actuating Voltage	19.2 V DC
Electrical Endurance	100000 Operations
No. of N/C Contacts	1
No. of N/O Contacts	1
Timing Range	12 ms
Contact Configuration	SPDT
Electrical Connection	PCB Pin Terminal
Rated Current	16 A
Rated Voltage	24 V DC
Change-Over Contacts	SPDT
Mechanical Durability	10000000 Operations
Contact Material	Silver Nickel Alloy
Model	High Capacity
Mounting Type	PCB
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	29 mm
Height	15 mm
Weight	15 g
Width	12.7 mm
Humidity	45-85%
Operating Temperature	-40 to 85 deg C
Standards and Approvals	CE, cRuUS, UL Recognized File E59804
