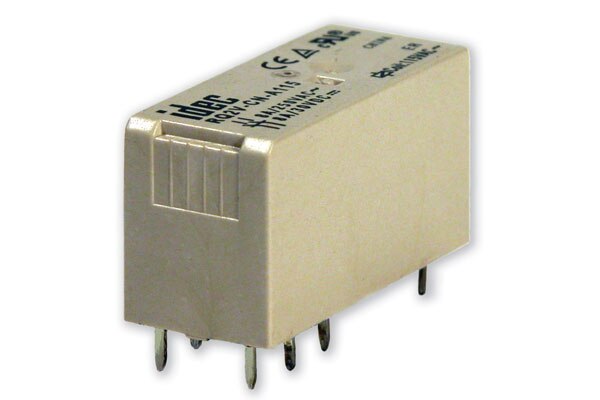

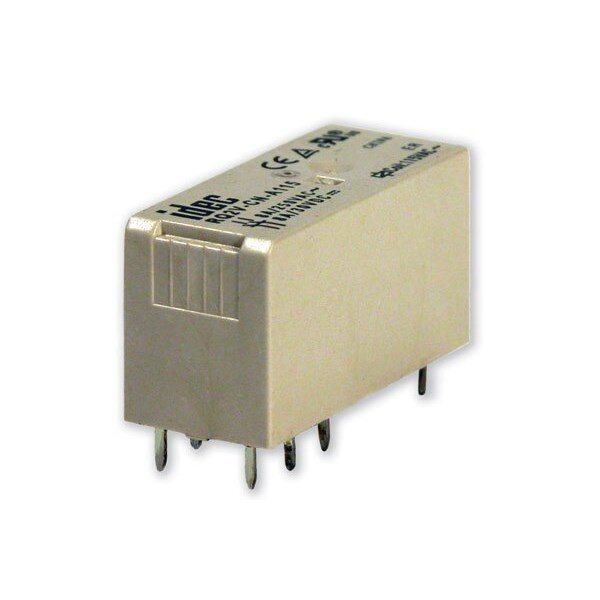

IDEC RQ2V-CN-A230 PCB Relay DPDT 230VAC Coil 2-Pole 8A

Product Code: RQ2V-CN-A230

1

Specifications

Product Type	PCB Relay
Brand	IDEC
Coil Voltage	230 VAC
Contact Configuration	DPDT
Contact Material	Silver Nickel Alloy
Contact Resistance	100 MOhm
Depth	15 mm
Electrical Life	100000 Operations
Height	29 mm
Humidity	45-85%
Mechanical Life	10000000 Operations
Model	Basic
Number of Poles	2
Operating Time	12 ms
Operational Temperature	-40 to 85 deg C
Rated Current	8 A
Standards and Approvals	CE, cRuUS, UL Recognized File E59804
Vibration Resistance	10-55 Hz
Weight	15 g
Width	12.7 mm

Documents

IPD Product Catalogue V17

IDEC Brochure

IDEC Catalogue

IDEC Datasheet

Certificate

cUL_Certification

UL Certification
