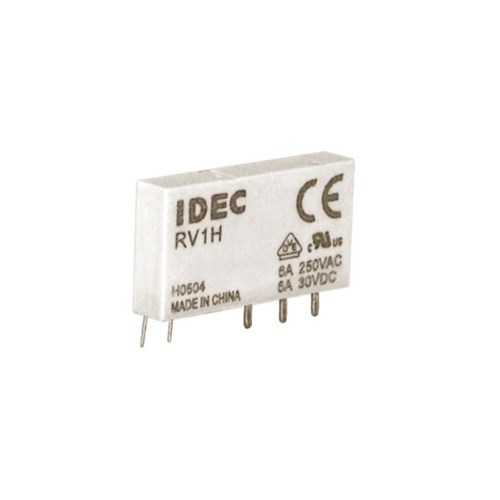

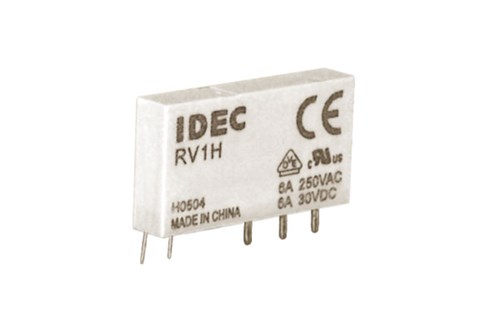

IDEC RV1H-G-D24 PCB Relay SPDT 24VDC Coil 6A DIN Rail Mount

Product Code: RV1H-G-D24

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type PCB Relay
Brand IDEC
Series RV
Actuating Voltage 21.6 V DC
No. of N/C Contacts 1
No. of N/O Contacts 1
Contact Configuration SPDT
Electrical Connection Pin
Rated Current 6 A
Rated Voltage 24 V DC
Terminal Type Screw
Change-Over Contacts SPDT
Contact Material Gold - Plated
Mounting Type PCB
Width 6 mm
Operating Temperature -40ºC ~ 70°C
Standards and Approvals CE, cULus, RoHS
