Specifications

Product Type	Interface Relays
Brand	IDEC
Series	RV
Actuating Voltage	38.4 V
No. of N/C Contacts	2
No. of N/O Contacts	2
Contact Configuration	DPDT
Electrical Connection	Screw Terminal
Rated Current	16 A
Rated Power	0.2 W
Rated Voltage	48 V
Terminal Type	Screw
Response Time	980 ms
Change-Over Contacts	DPDT
Mechanical Durability	10000000 Operations
Contact Material	AgNi (Au - Plated)
Mounting Type	DIN Rail
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	74.2 mm
Height	88 mm
Weight	52 g
Width	14 mm
Humidity	5-85%
Operating Temperature	-40 to +55°C
IP Rating	IP20
Standards and Approvals	CE, cULus, RoHS

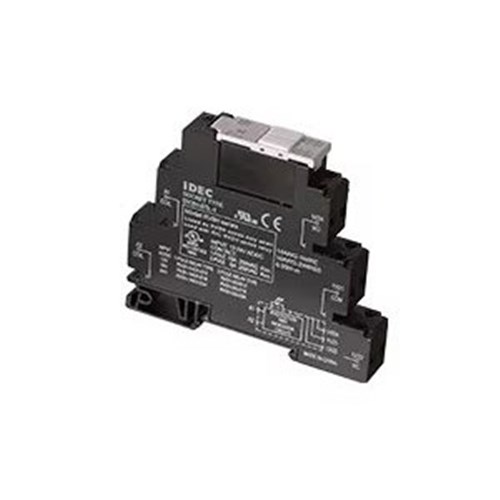

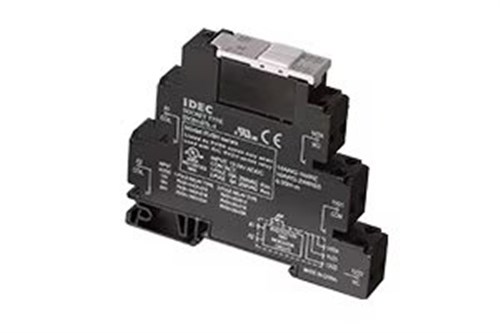

IDEC RV8H-2L-AD48 Slim Interface Relay 14mm W DPDT Screw Terminal 48VAC
