Specifications

Product Type	Interface Relays
Brand	IDEC
Series	RV
Actuating Voltage	176 V - 192 V
No. of N/C Contacts	2
No. of N/O Contacts	2
Contact Configuration	DPDT
Electrical Connection	Spring Clamp
Rated Current	16 A
Rated Power	0.85 W
Rated Voltage	220 V - 240 V
Terminal Type	Spring Clamp
Response Time	980 ms
Change-Over Contacts	DPDT
Mechanical Durability	10000000 Operations
Contact Material	AgNi (Au - Plated)
Mounting Type	DIN Rail
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	74.2 mm
Height	93.4 mm
Weight	49 g
Width	14 mm
Humidity	5-85%
Operating Temperature	-40 to +70°C
IP Rating	IP20
Standards and Approvals	CE, cULus, RoHS

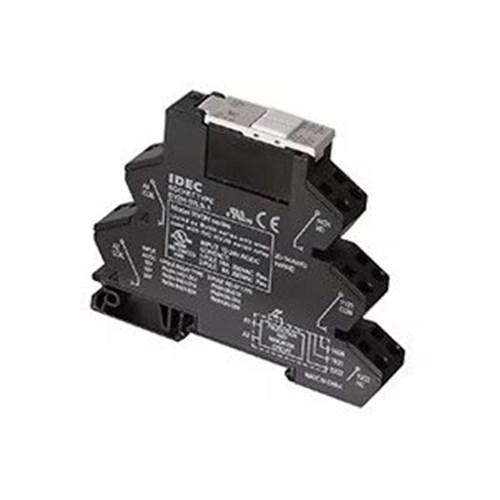

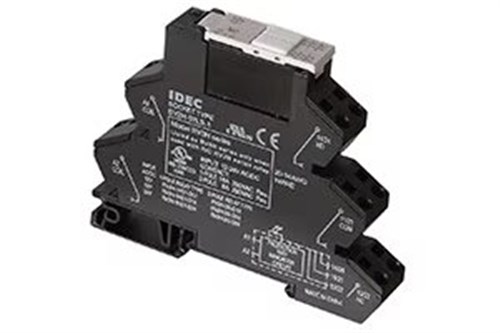

IDEC RV8H-2S-AD220 Slim Interface Relay 14mm W DPDT Spring Clamp Terminal 220VAC
