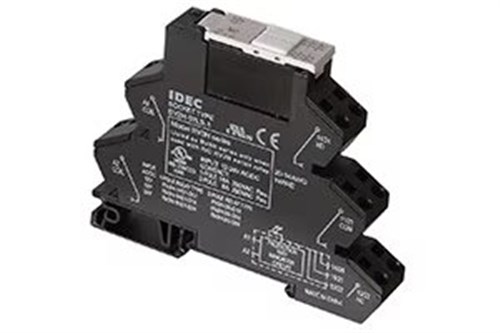

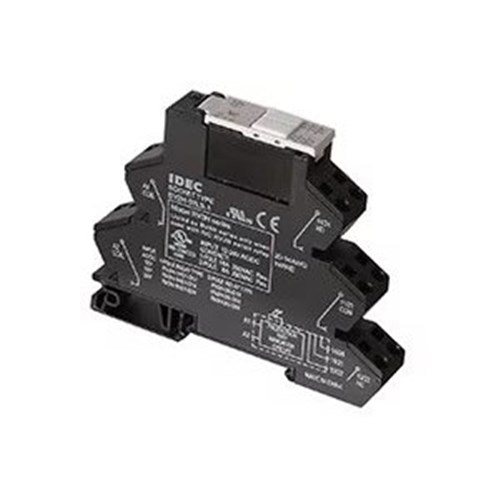

IDEC RV8H-2S-AD24 Slim Interface Relay 14mm W DPDT Spring Clamp Terminal 24VAC

Product Code: RV8H-2S-AD24

1

Specifications

Product Type	Slim Interface Relay
Brand	IDEC
Contact Configuration	DPDT
Contact Material	AgNi
Degree of Protection	IP20
Humidity	5-85%
Mechanical Life	10000000 Operations
Number of Poles	2
Operational Temperature	-40 to 70 deg C
Rated Power	0.33 W
Rated Voltage	24 VAC
Shock Resistance	980 ms
Standards and Approvals	CE, cULus, RoHS
Terminal Type	Spring Clamp
Vibration Resistance	10-55 Hz
Weight	49 g
Width	14 mm

Documents

IPD Product Catalogue V17

Certificate

cUL_Certification

UL Certification
