Specifications

Product Type	Interface Relays
Brand	IDEC
Series	RV
Actuating Voltage	43.2 V
No. of N/C Contacts	1
No. of N/O Contacts	1
Electrical Connection	Spring Clamp
Rated Current	6 A
Rated Power	0.2 W
Rated Voltage	48 V
Terminal Type	Spring Clamp
Response Time	980 ms
Change-Over Contacts	SPDT
Contact Material	AgNi
Mounting Type	DIN Rail
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	74.2 mm
Height	93.4 mm
Width	14 mm
Humidity	5-85%
Operating Temperature	-40 to +70°C
IP Rating	IP20
Standards and Approvals	CE, cULus, RoHS, UL/cUL

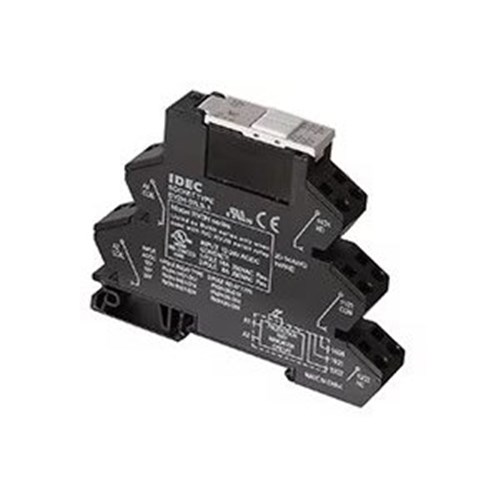

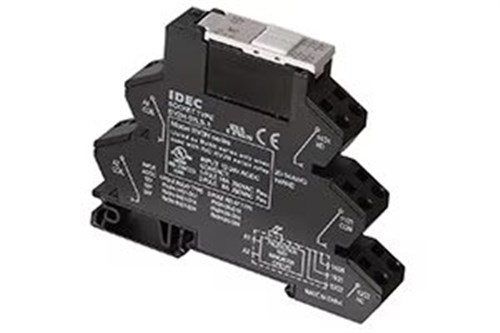

IDEC RV8H-S-AD48 Slim Interface Relay 6mm W Spring Clamp Terminal 48VAC
