Specifications

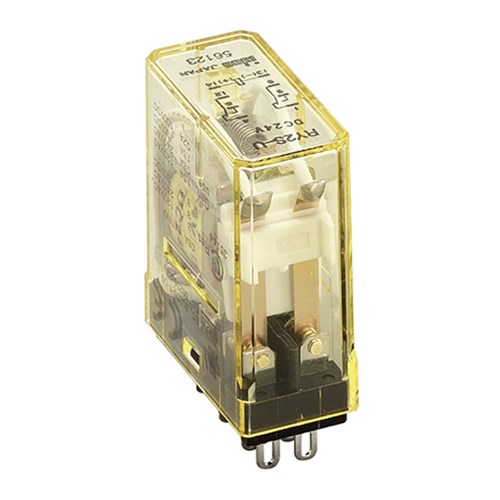

Product Type	General Purpose Miniature Relay
Brand	IDEC
Series	RY
Actuating Voltage	16.8 V DC
No. of N/C Contacts	2
No. of N/O Contacts	2
Contact Configuration	DPDT
Electrical Connection	Blade Terminal
Rated Current	3 A
Rated Voltage	24 V DC
Terminal Type	Solder
Timer Relay Type	RY2 DPDT Relay
Change-Over Contacts	DPDT
Contact Material	Gold-plated silver
Mounting Type	With Sockets (DIN, Finger-Safe DIN, Through Panel, PCB)
Depth	35.6 mm
Height	27.5 mm
Width	14 mm
Operating Temperature	–25 to +55°C (no freezing)
Standards and Approvals	CE, cRuus, CSA
