Specifications

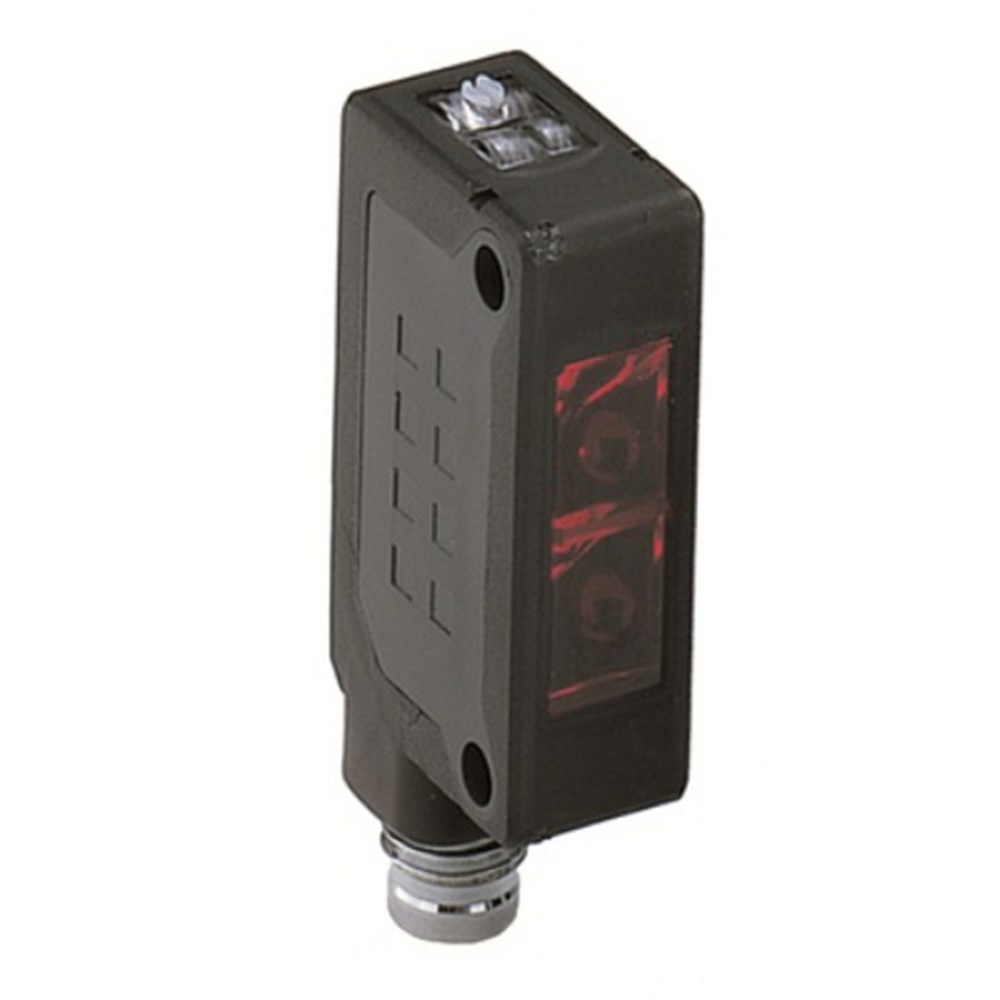

Product Type	Photoelectric sensor
Brand	IDEC
Series	SA1E
Max. Switching Distance	2.5 m
Sensing Type	Polarized retro-reflective
Type of Switching Output	PNP open collector
Electrical Connection	M8 connector (4-pin)
Light Source	Red LED
Rated Voltage	12 to 24 V DC
Material	PC/PBT (housing), PMMA (lens), PC (indicator cover)
Depth	19.5 mm
Height	31.5 mm
Width	10.8 mm
Humidity	35-85%
Operating Temperature	-25 to 55 degC
IP Rating	IP67
