Specifications

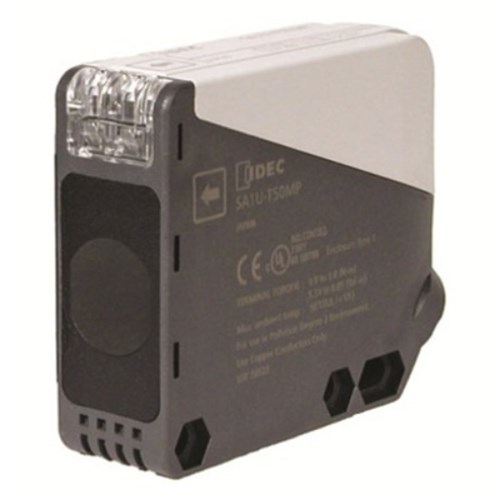

Product Type	Photoelectric switch
Brand	IDEC
Series	SA1U
Max. Switching Distance	7 m
Sensing Type	Polarized retro-reflective
Type of Switching Output	Relay contact (SPDT)
Electrical Connection	Terminal block with M3 spring-up screws
Light Source	Red LED
Rated Power	3 VA
Rated Voltage	12 to 240 V DC, 24 to 240 V AC
Response Time	20 ms
Mechanical Durability	50000000 Operations
Housing Material	PBT
Material	PBT (housing), PC (indicator cover), PMMA (lens)
Weight	130 g
Humidity	35-85%
Operating Temperature	-25 to 60 degC
IP Rating	IP67
