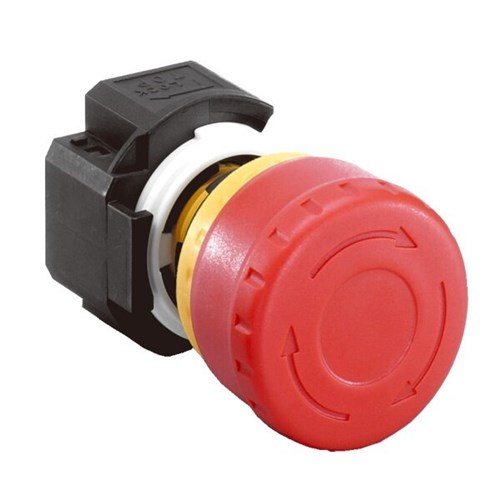

IDEC XA1E-BV302-R Emergency Stop Pushbutton 2NC Panel Screw

Product Code: XA1E-BV302-R

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Emergency-Stop Switches
Brand IDEC
Series XA
No. of N/C Contacts 2
No. of N/O Contacts 0
Illumination Non-illuminated
Rated Current 11 mA
Rated Voltage 125V, 250V
Terminal Type Solder Terminal
Rated Thermal Current (Ith) 5 A
Pushbutton Colour Dark Red
Pushbutton Material Plastic
Pushbutton Type Mushroom 29mm
Unlocking Method Twist Release / Pull Release
Mounting Hole Diameter (mm) 16.2 mm
Button Diameter (mm) 29 mm
IP Rating IP65
