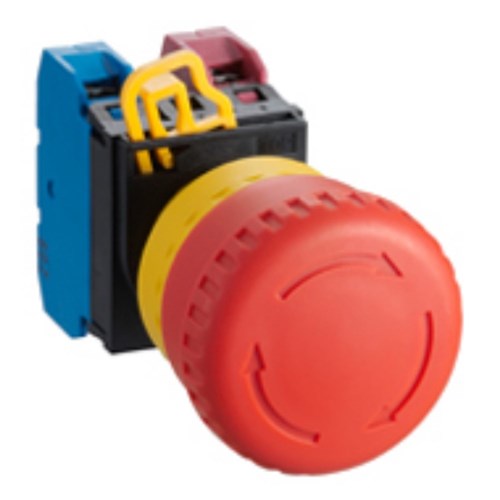

IDEC YW1B-V4E01R Emergency Stop Pushbutton Switch Non-Illuminated 1NC 30mm W 41.4mm H 78.3mm D M3.5 Screw

Product Code: YW1B-V4E01R

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Emergency Stop Pushbutton Switch
Brand IDEC
Series YW
Colour Red
Contact Configuration 1NC
Contact Material Silver
Degree of Protection IP20, IP65
Depth 78.3 mm
Height 41.4 mm
Hole Diameter 40 mm
Illumination Non-Illuminated
Mode of Operation Pushlock, Pull/Turn Reset
Terminal Type M3.5 Screw
Width 30 mm

Documents

IPD Product Catalogue V17
IDEC Catalogue

Certificate

EU Declaration of Conformity
