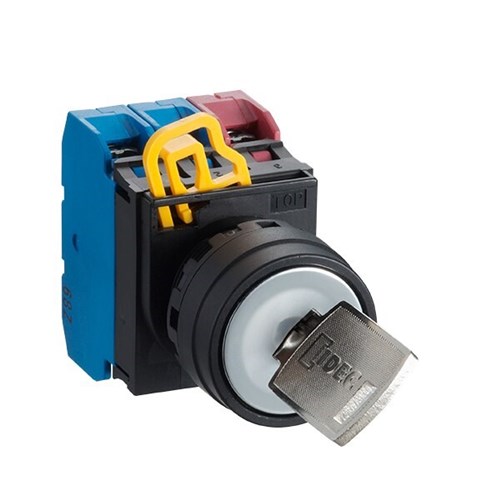

IDEC YW1K-2BE11 Selector Switch 2Position 1NO+1NC Left Key Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H

Product Code: YW1K-2BE11

1

Specifications

Product Type	Selector Switch
Brand	IDEC
Series	YW
Actuator Type	Key
Bezel Material	Plastic
Bezel Shape	Round
Contact Configuration	1NO+1NC
Degree of Protection	IP20, IP65
Depth	69.8 mm
Height	41.4 mm
Insulation Resistance	100 MOhm
Mode of Operation	Spring Return
Mounting Hole Diameter	22 mm
Number of Positions	2
Operation Position	Left
Operational Temperature	-20 to 55 deg C
Rated Current	10 A
Rated Frequency	50/60 Hz
Rated Insulation Voltage	600 V
Standards and Approvals	CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type	M3.5 Screw
Tightening Torque	1 N-m
Width	30 mm
