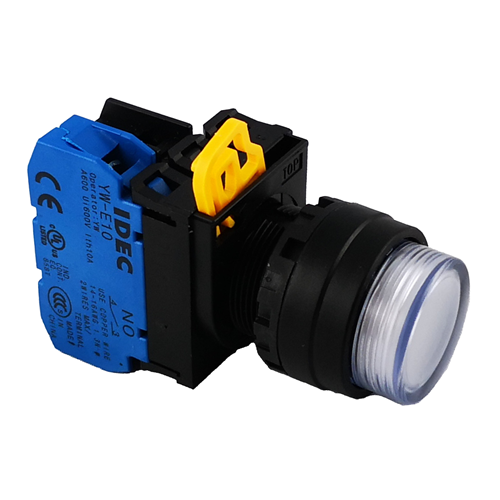

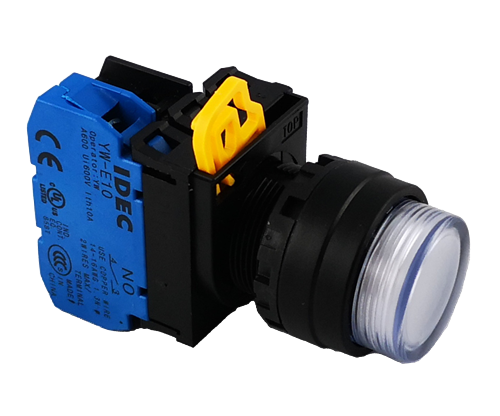

Specifications

Product Type	Pushbutton
Brand	IDEC
Series	YW
Actuator Type	Extended
Bezel Material	Plastic
Colour	Pure White
Contact Configuration	1NO
Contact Material	Silver
Cutout Size	22 mm
Degree of Protection	IP65 Front, IP20 Terminal
Depth	64.8 mm
Diameter	22 mm
Function	Momentary
Height	41.4 mm
Humidity	45-85%
Illumination	Illuminated
Insulation Resistance	100 MOhm
Lamp Colour	Pure White
Lamp Type	Built-in LED
Mechanical Life	0.25 million Operations Single Contact Block, 0.1 million Operations Double Contact Block
Model	Momentary Extended
Operational Temperature	-20 to 55 deg C
Rated Continuous Current	10 A
Rated Insulation Voltage	600 V
Rated Voltage	24 VAC/DC
Shock Resistance	10 g/ms
Standards and Approvals	cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Vibration Resistance	5-55 Hz
Width	30 mm
