Specifications

Product Type	Pilot Light
Brand	IDEC
Ambient Temperature	-30 to 70 deg C
Colour	Brown
Connecting Capacity	1/2 x 0.75-2.5 sq-mm Flexible with Ferrule, 1/2 x 0.75-2.5 sq-mm Flexible with Insulated Ferrule, 1/2 x 0.75-2.5 sq-mm Flexible, 1/2 x 0.75-2.5 sq-mm Solid
Connection Type	Screw Clamp
Contact Configuration	2NC
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	48 mm
Height	39.9 mm

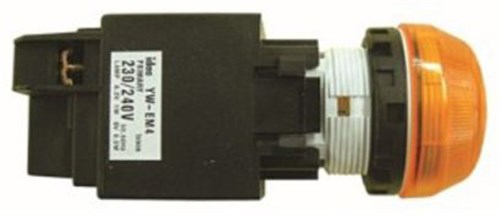

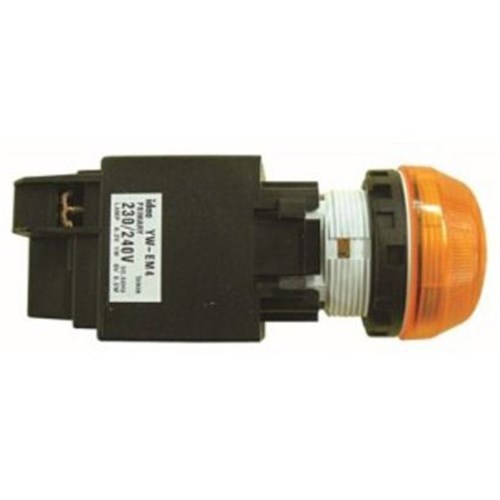

Model	Dome Transformer - With Incandescent Lamp
Mounting Type	Front
Operational Temperature	-30 to 70 deg C
Rated Frequency	50/60 Hz
Storage Temperature	-40 to 70 deg C
Tightening Torque	0.9 N-m
Width	9.6 mm
Wire Stripping Length	10 mm
