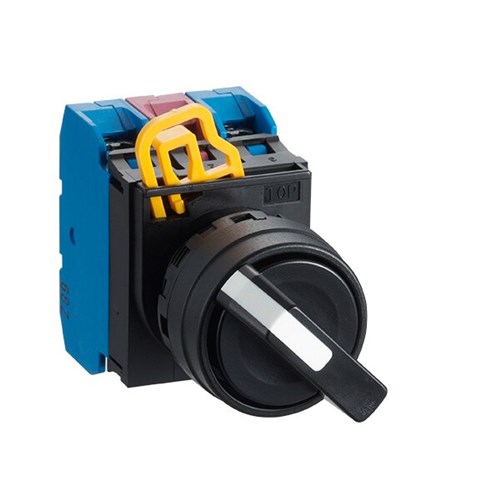

IDEC YW1S-3E30 Selector Switch 3Position 3NO+1NC Left Center Right Maintained Round Plastic 30mm W

Product Code: YW1S-3E30

1

Specifications

Product Type	Selector Switch
Brand	IDEC
Series	YW
Bezel Material	Plastic
Bezel Shape	Round
Contact Configuration	3NO+1NC
Degree of Protection	IP20, IP65
Depth	69.8 mm
Function	Maintained
Height	41.4 mm
Insulation Resistance	100 MOhm
Model	Maintained
Mounting Hole Diameter	22 mm
Number of Positions	3
Operation Position	Left, Centre, Right
Operational Temperature	-20 to 55 deg C
Rated Current	10 A
Rated Frequency	50/60 Hz
Rated Insulation Voltage	600 V
Standards and Approvals	CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type	M3.5 Screw
Tightening Torque	1 N-m
Width	30 mm
