Specifications

Product Type	Pushbutton
Brand	IDEC
Series	YW
Actuator Type	Extended with Full Shroud
Bezel Material	Metal
Colour	Red
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP65 Front, IP20 Terminal
Depth	64.8 mm
Diameter	22 mm
Function	Momentary
Height	41.4 mm
Humidity	45-85%
Illumination	Illuminated
Insulation Resistance	100 MOhm
Lamp Colour	Red
Lamp Type	Built-in LED
Mechanical Life	5 million Operations Single Contact Block, 1 million Operations Double Contact Block
Model	Extended With Full Shroud Momentary- With LED Lamp
Operational Temperature	-20 to 55 deg C
Rated Continuous Current	10 A
Rated Insulation Voltage	600 V
Rated Voltage	230/240 VAC/DC
Shock Resistance	10 g/ms
Standards and Approvals	cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature	-40 to 85 deg C
Vibration Resistance	5-55 Hz
Width	30 mm

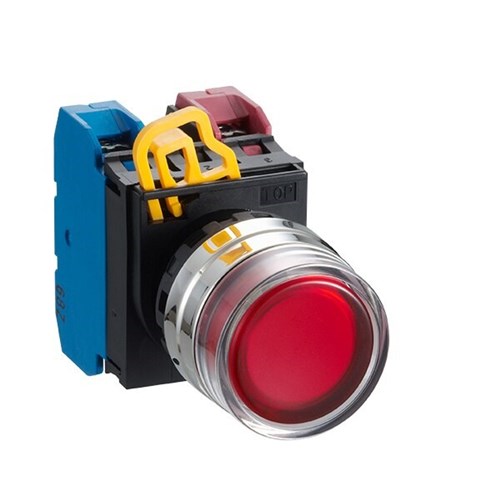

IDEC YW4L-MF2E20QM3R Illuminated Pushbutton 22mm Extended w/Full Shroud Momentary Red 230/240VAC/DC 2NO
