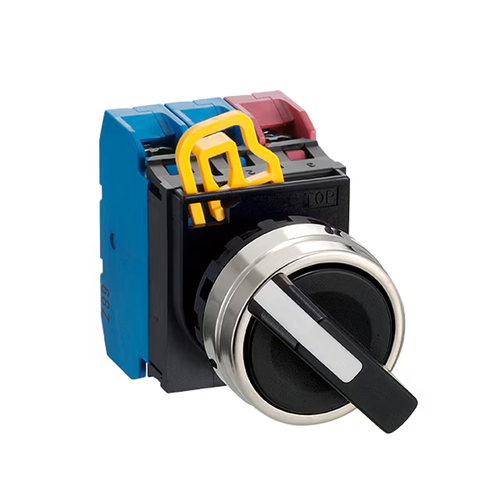

IDEC YW4S-2E11 Selector Switch 2Position 1NO+1NC Maintained Knob Round Metal M3.5 Screw Terminal 30mm W

Product Code: YW4S-2E11

1

Specifications

Product Type	Selector Switch
Brand	IDEC
Series	YW
Actuator Type	Knob
Bezel Material	Metal
Bezel Shape	Round
Contact Configuration	1NO+1NC
Degree of Protection	IP20, IP65
Depth	69.8 mm
Function	Maintained
Height	41.4 mm
Insulation Resistance	100 MOhm
Material	Metal (Bezel)
Mode of Operation	Maintained L, R
Mounting Hole Diameter	22 mm
Number of Positions	2
Operational Temperature	-20 to 55 deg C
Rated Current	10 A
Rated Frequency	50/60 Hz
Rated Insulation Voltage	600 V
Standards and Approvals	CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type	M3.5 Screw
Tightening Torque	1 N-m
Width	30 mm

Documents

IPD Product Catalogue V17

IDEC Catalogue

Certificate

EU Declaration of Conformity
