Introducing ipd Build

Instant distribution board design and pricing

Save time at every step of the distribution board design process and ensure AS/NZS 61439 compliance with IPD’s easy-to-use online configuration tool.

Configuring and ordering custom distribution boards is easier than ever with ipd Build, our purpose-built software designed for ease of use by anyone including electricians, electrical contractors and switchboard builders.

With a free account on ipd Build, you can create customised board designs within the defined scope, instantly receive accurate pricing, and download drawings free of charge from within the tool. Every design is fully compliant with AS/NZS 61439, ensuring quality, safety, and performance in every build.

Web-based configurator
Custom layouts
Immediate drawing download
Instant pricing

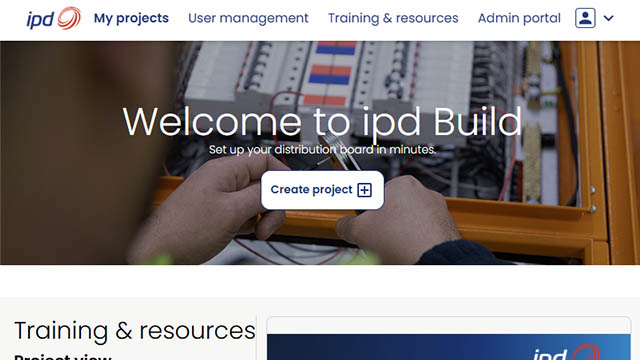

See ipd Build in action

How does ipd Build work?

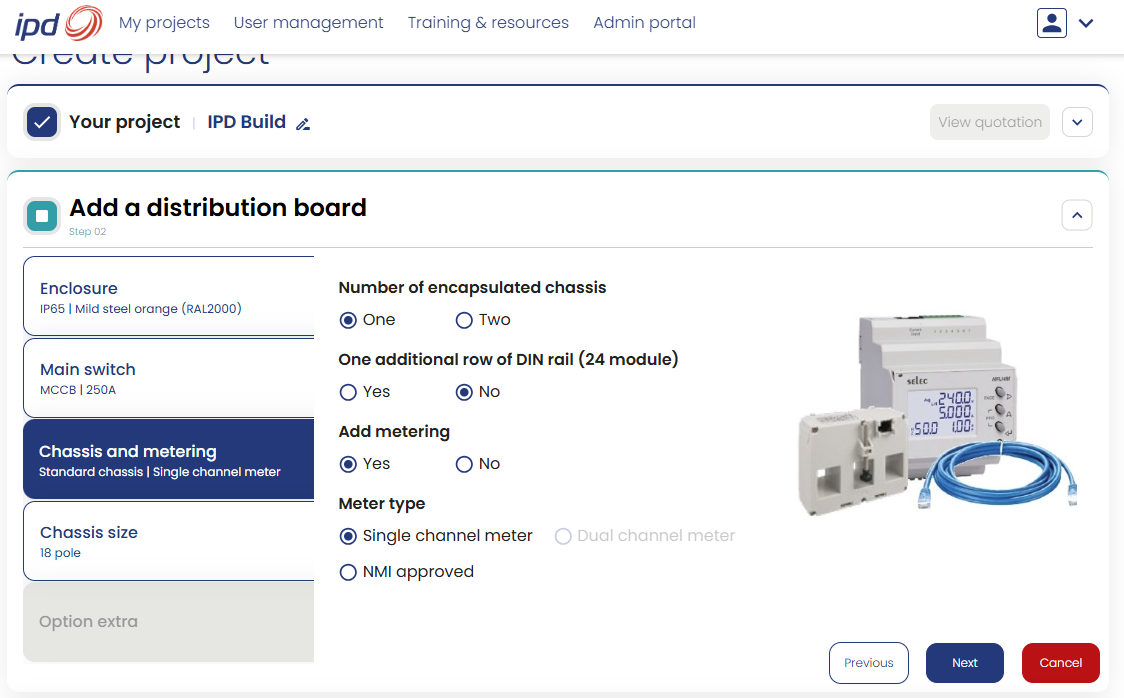

Design a board in minutes by selecting a range of options. The available options are adjusted based on your selections to save you time and eliminate configuration errors.

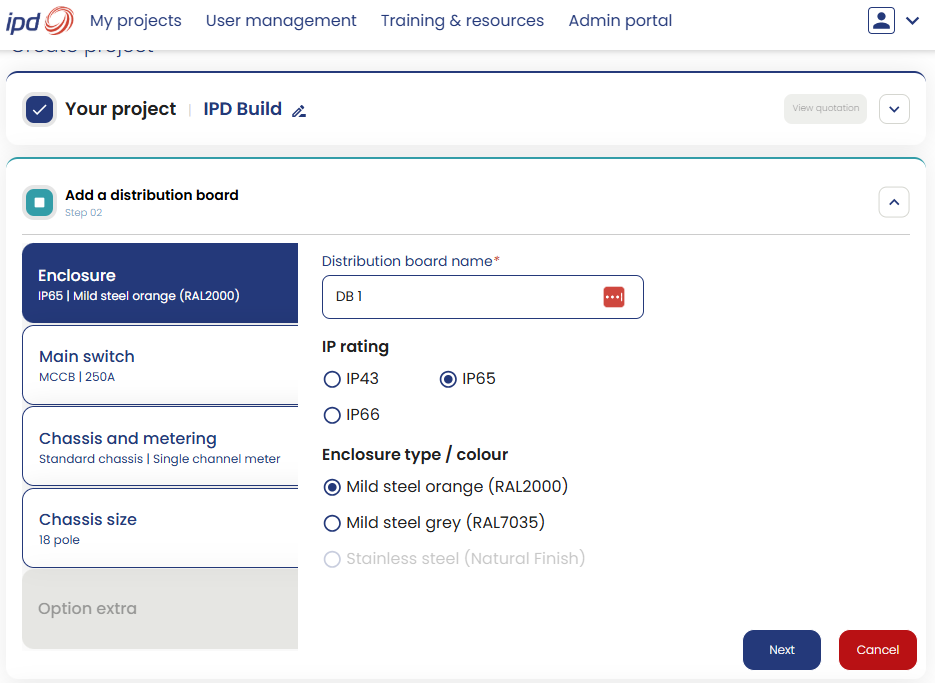

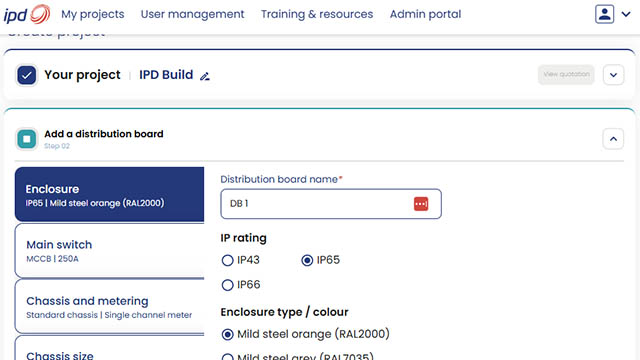

Enclosure IP rating and colour

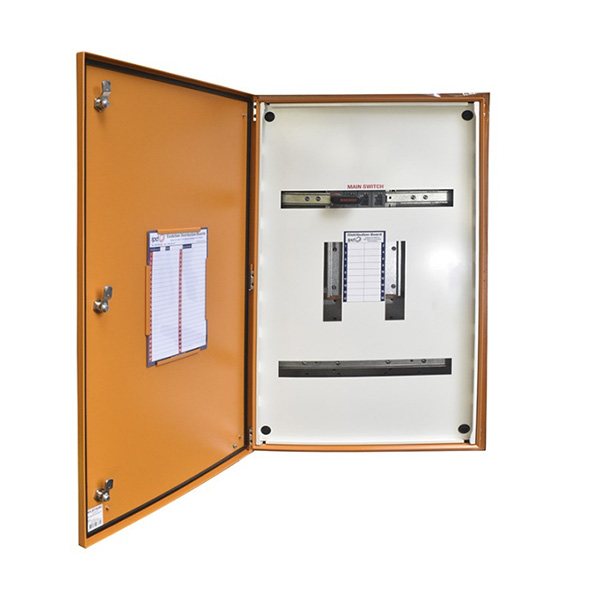

Extra row of DIN rail (24 module)

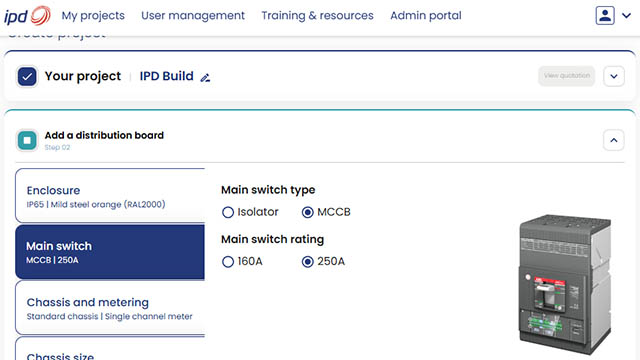

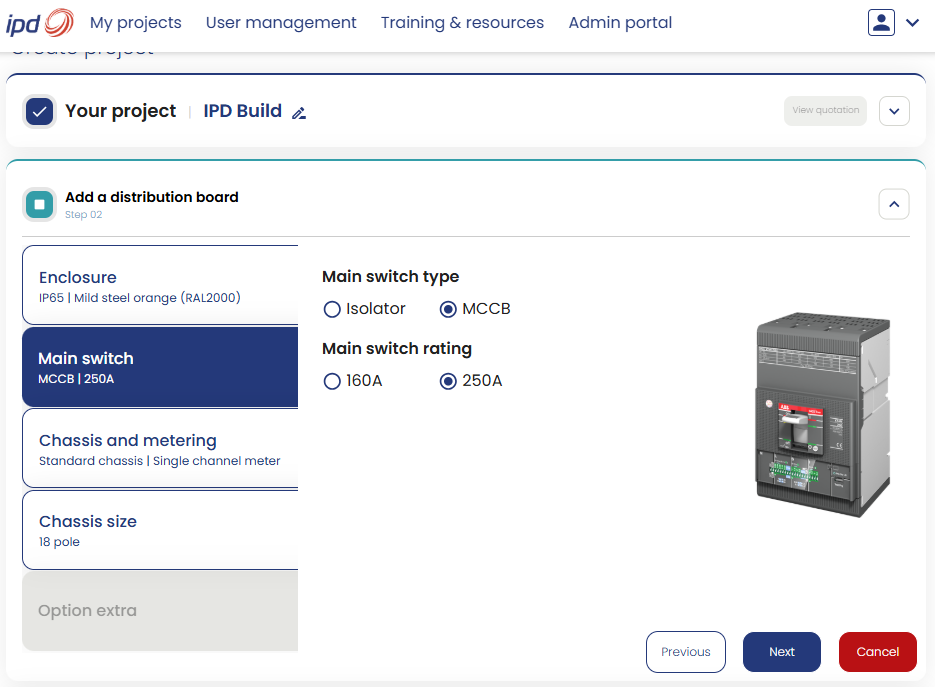

Main switch type and rating

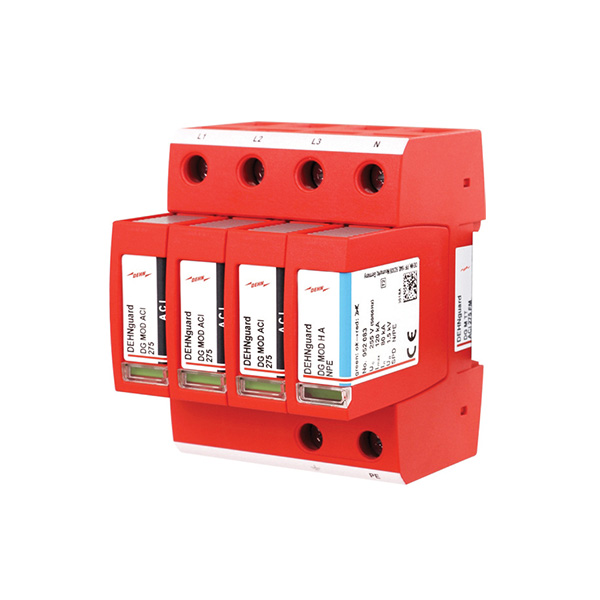

Surge protection

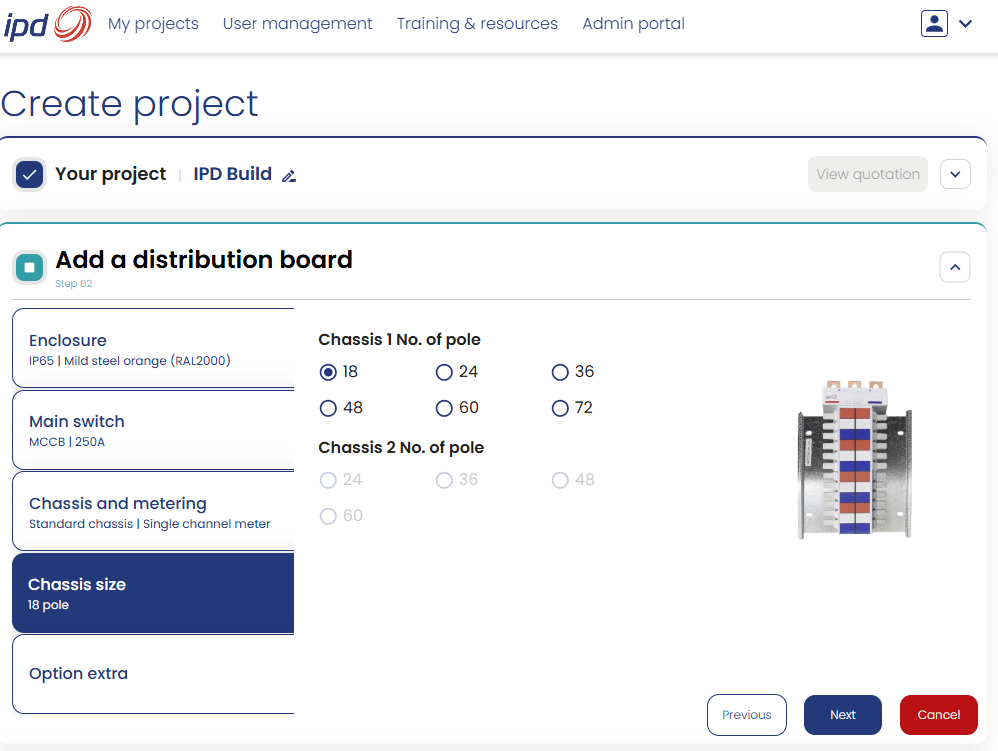

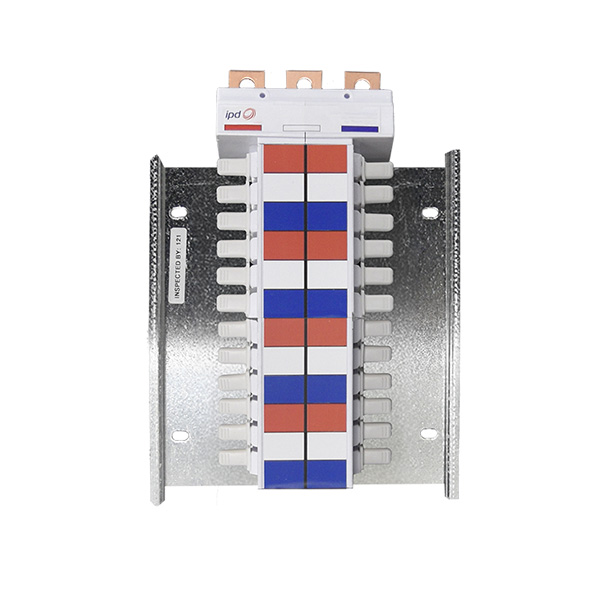

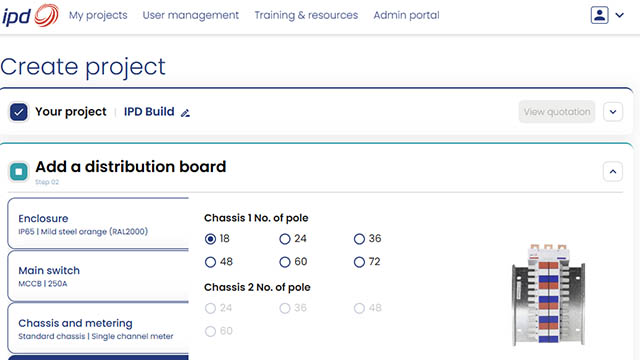

Single or split chassis

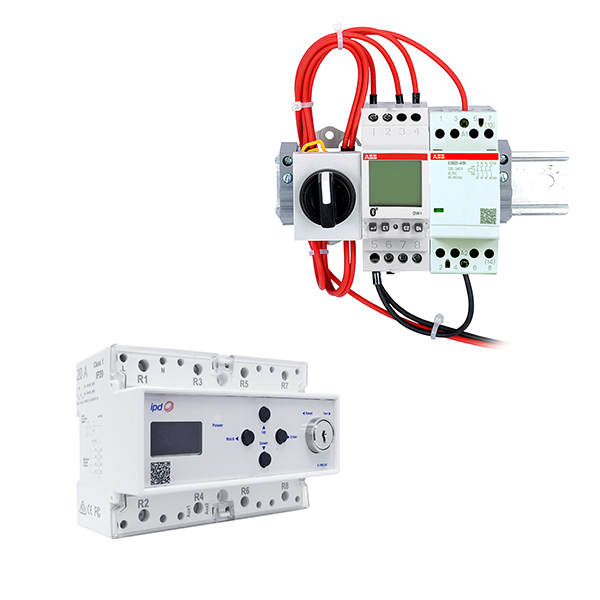

Lighting test and control kits

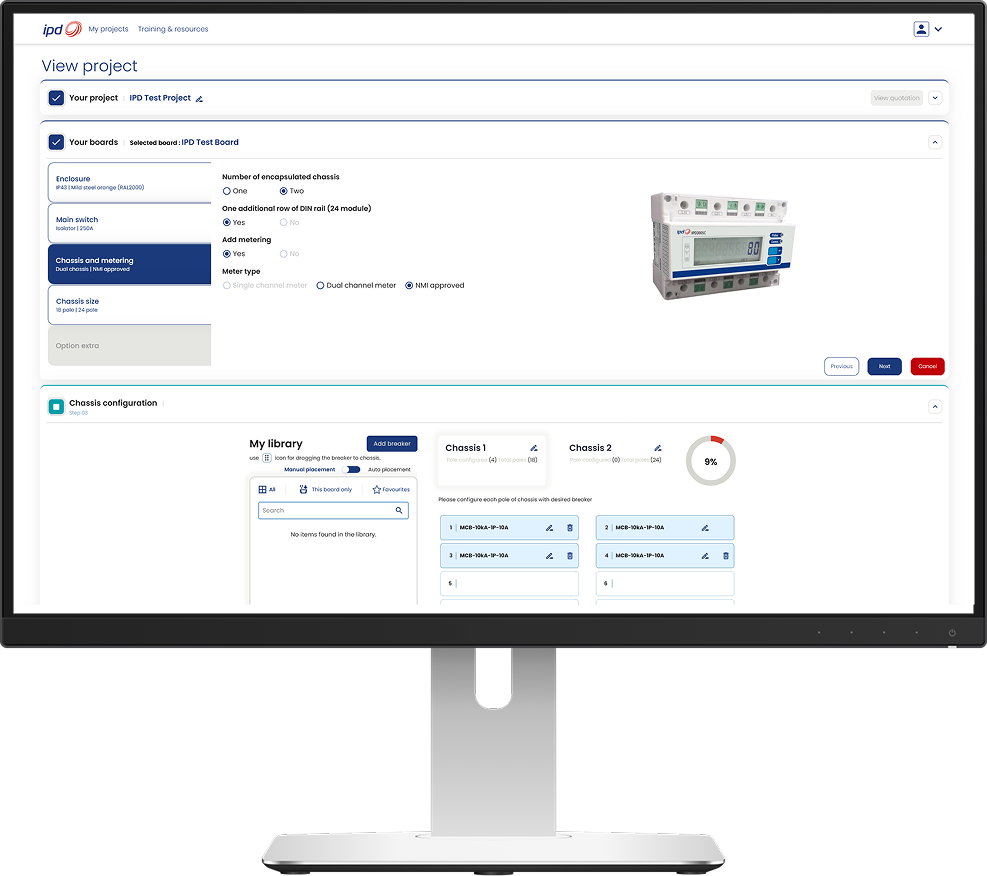

kWh or NMI-approved metering

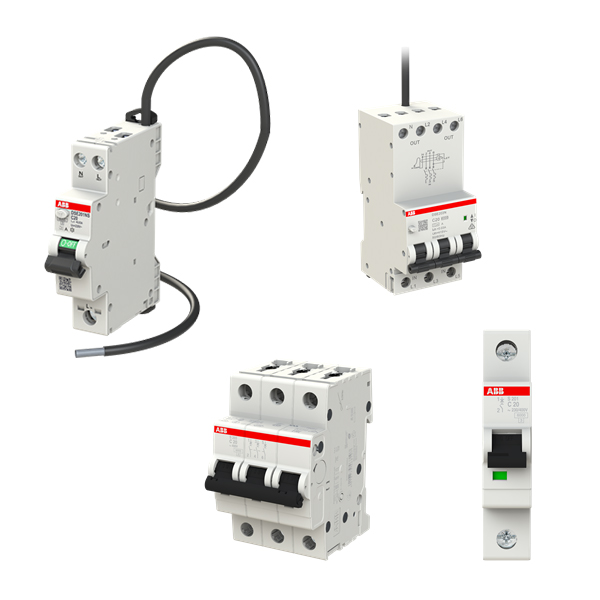

MCBs and RCBOs

Full specifications

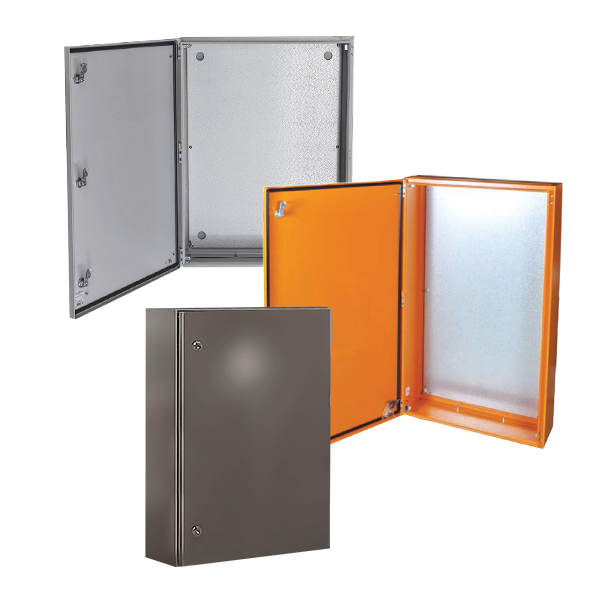

Selection of IP43 and IP65 enclosures in Mild steel Orange (RAL2000) and Grey (RAL7035) and IP66 Stainless steel (natural finish)

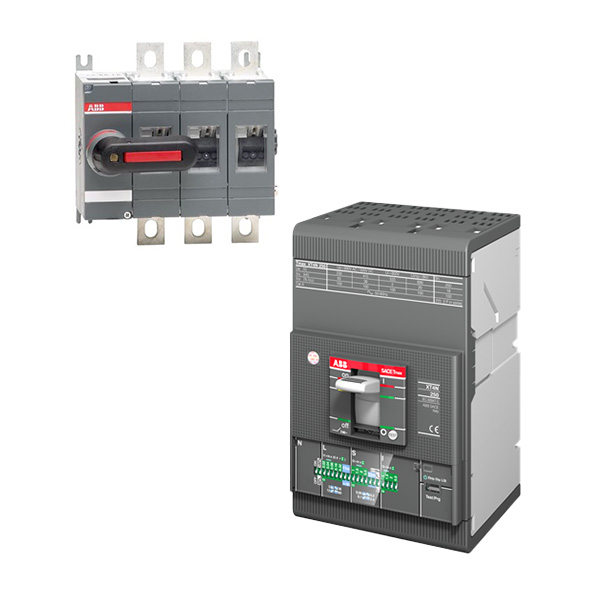

Selection of Isolator or MCCB as main switch and current rating of 160A or 250A
Suitable for applications with 6kA or 10kA fault level, by selecting correct outgoing breakers
Selection of MCBs and RCBOs that can be 1P or 3P, 6kA or 10kA
Applications: distribution boards for residential, commercial and industrial
Lead time: first 5 boards of every order will be manufactured and dispatched in 6 business days

ipd Build FAQs

Below are some of the most common questions we receive about ipd Build.

Can I update my personal or company details after creating an account?

Yes. Please contact IPD Customer Service to update your personal or company details.

Can I view pricing and download drawings for my configured board?

Yes. Based on your user type, you can view pricing on the screen, download drawings immediately at no additional cost, and receive detailed quotes.

Are the designs from ipd Build in line with AS/NZS 61439?

Yes, all designs generated by ipd Build are in line with AS/NZS 61439

How long is the lead time for delivery of boards generated by IPD build?

The first 5 boards of each order will be delivered within 6 business days. For additional boards, please contact IPD Customer Service for a delivery schedule.

What types of enclosures are available in ipd Build?

ipd Build offers IP43/IP65 mild steel enclosures in light grey and orange, as well as IP66 stainless steel enclosures.

Do I need to approve drawings after order placement?

No, all designs are assumed as approved when the order is placed and they go for manufacturing straight away.

What main switch options are available in ipd Build?

You can configure your board with either an isolator or MCCB, with ratings of 160A or 250A.

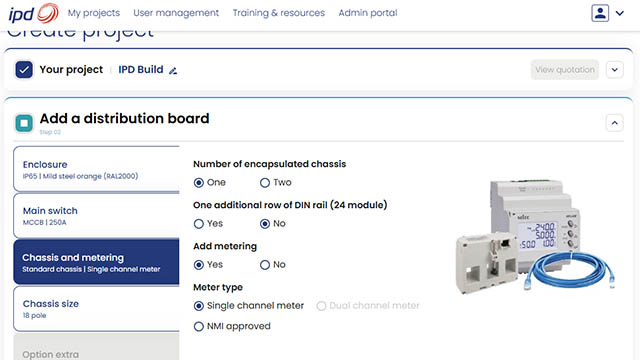

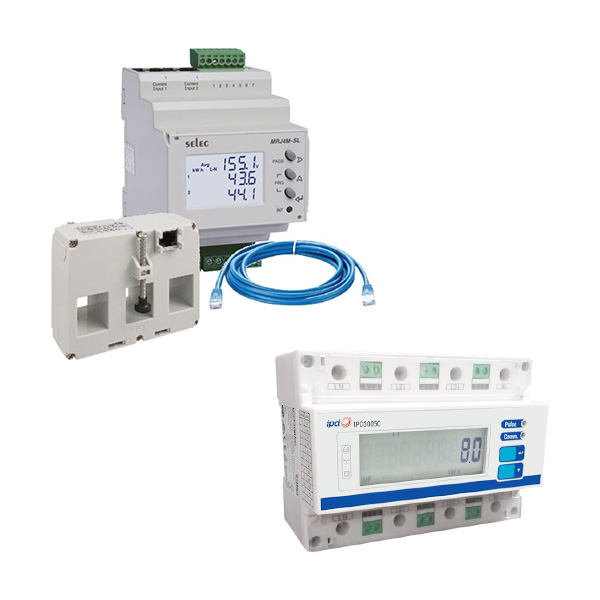

Can I add metering options to my configured board?

Yes. You can add single channel or dual channel metering options, as well as NMI-approved meters.

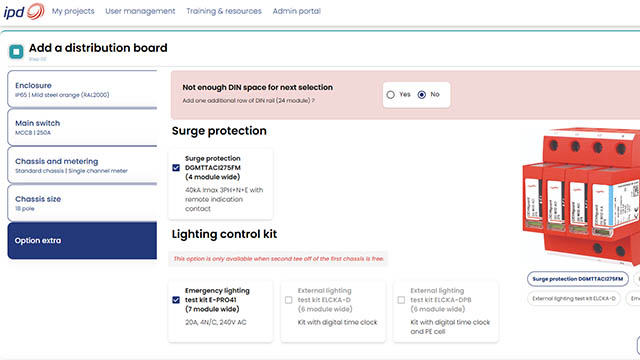

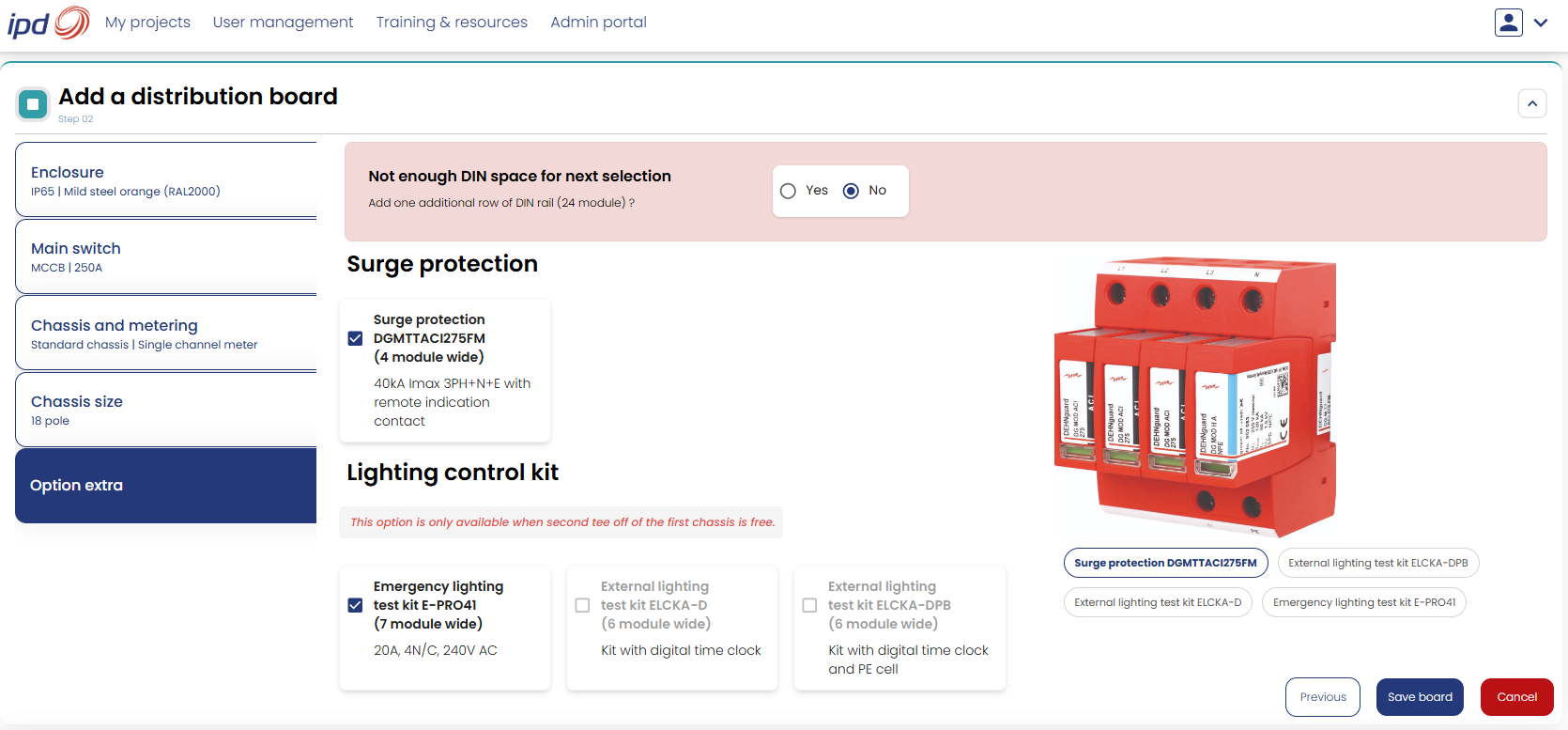

Can I add surge protection, emergency lighting test kits and external lighting control kits?

Yes. ipd Build allows you to add these optional extras to your configured board.

When adding an emergency lighting test kit, do I need to add an MCB separately?

No. ipd Build will automatically add the required MCB when you select an emergency lighting test kit.

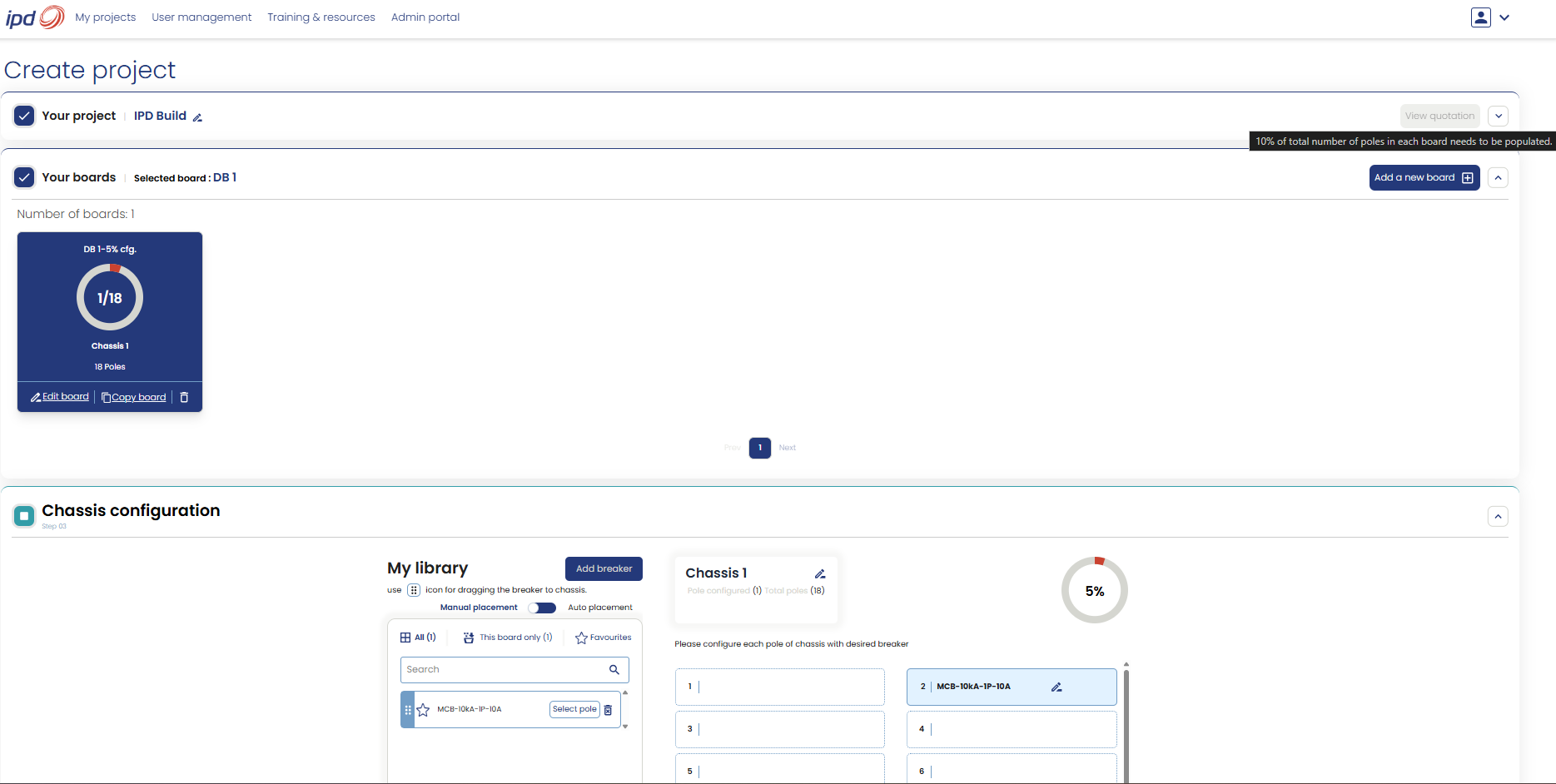

When can I view the quotation for my board?

You can view your quotation once you have populated at least 10% of the available chassis poles in each board.

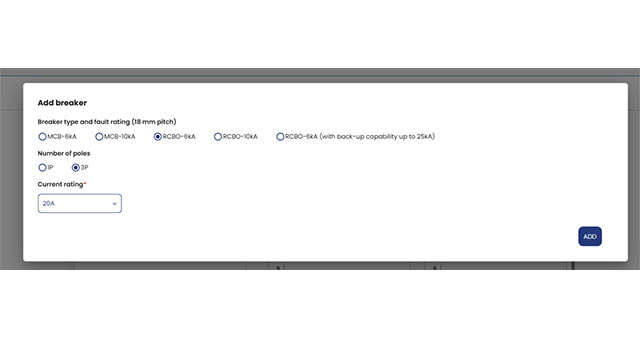

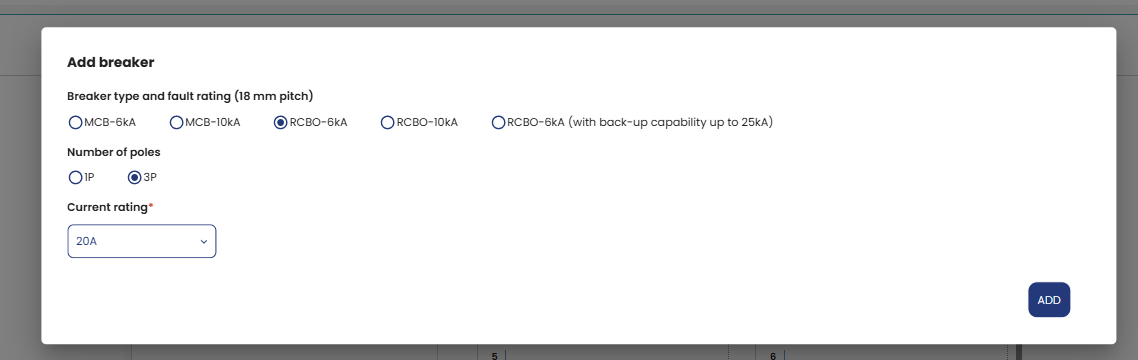

Can I add 1P and 3P RCBO and MCB to the board?

Yes, 6kA and 10kA options for 1P and 3P RCBO and MCBs can be added.

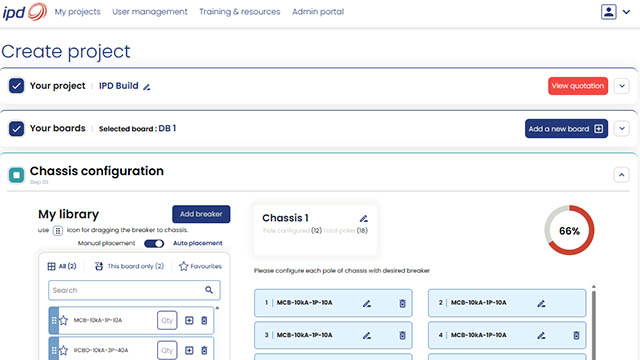

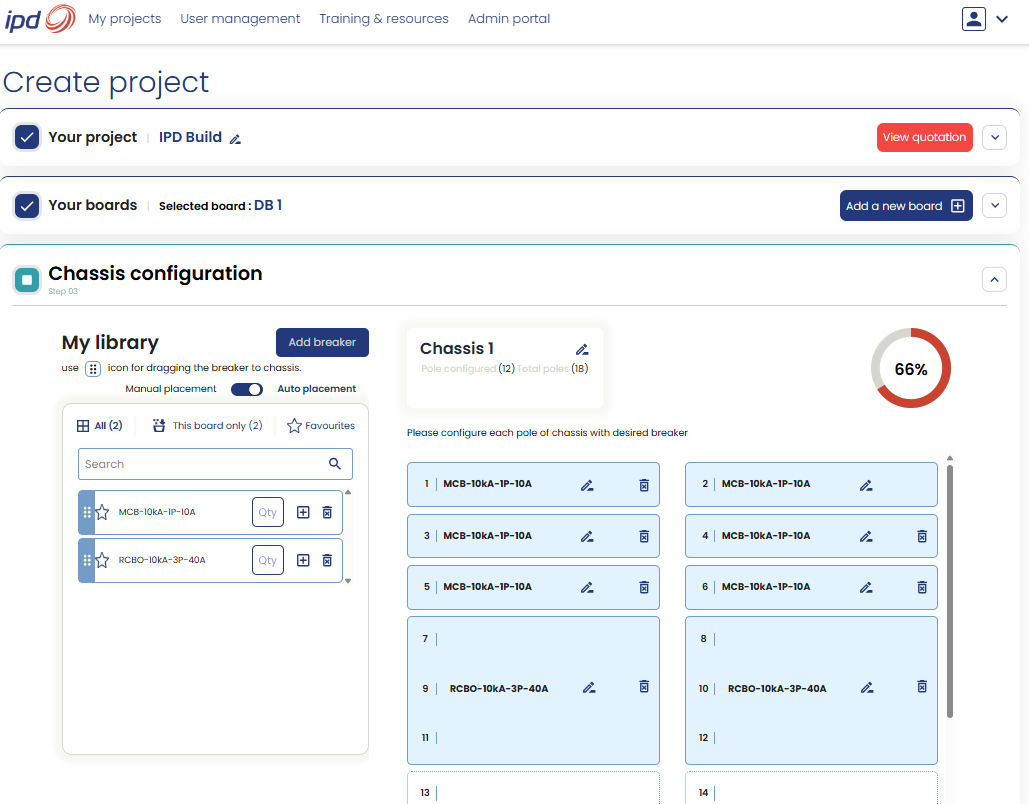

Can I add 3P outgoing breakers anywhere on the chassis?

No, to keep phase rotation of all outgoing 3P breakers the same, ipd Build only allows the top pole of a 3P breakers to be placed on a red phase only. Also, the next two poles underneath should be free as well to be able to physically fit the breaker.

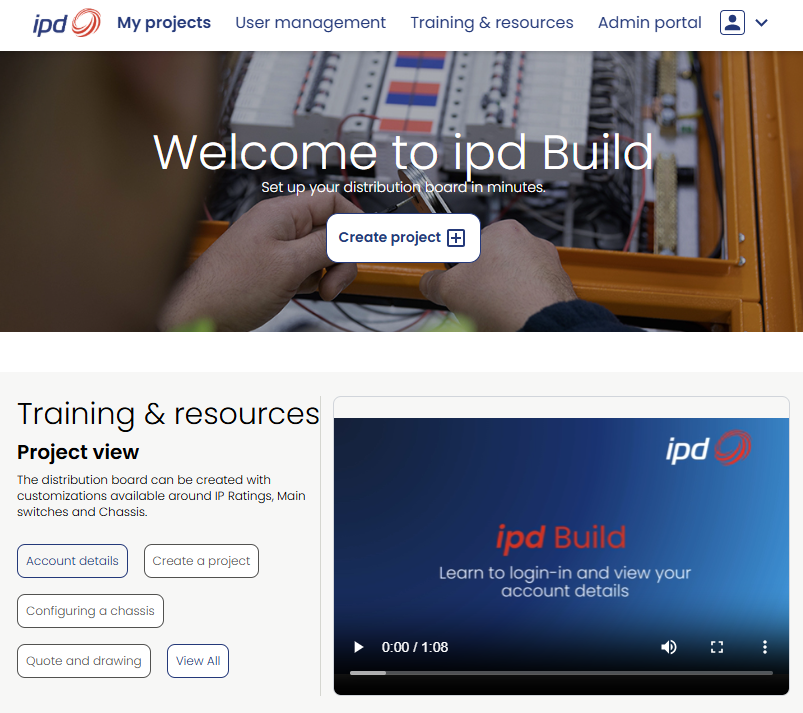

Getting started with ipd Build

IPD reviews & approves your account

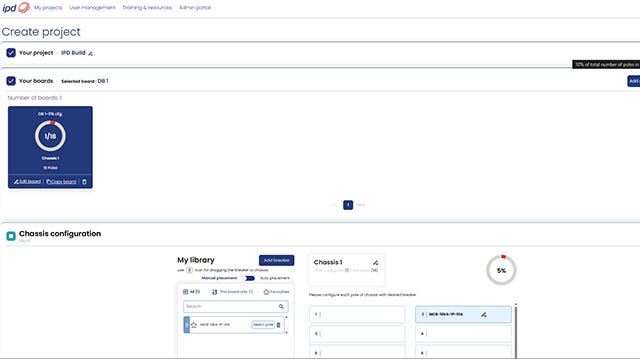

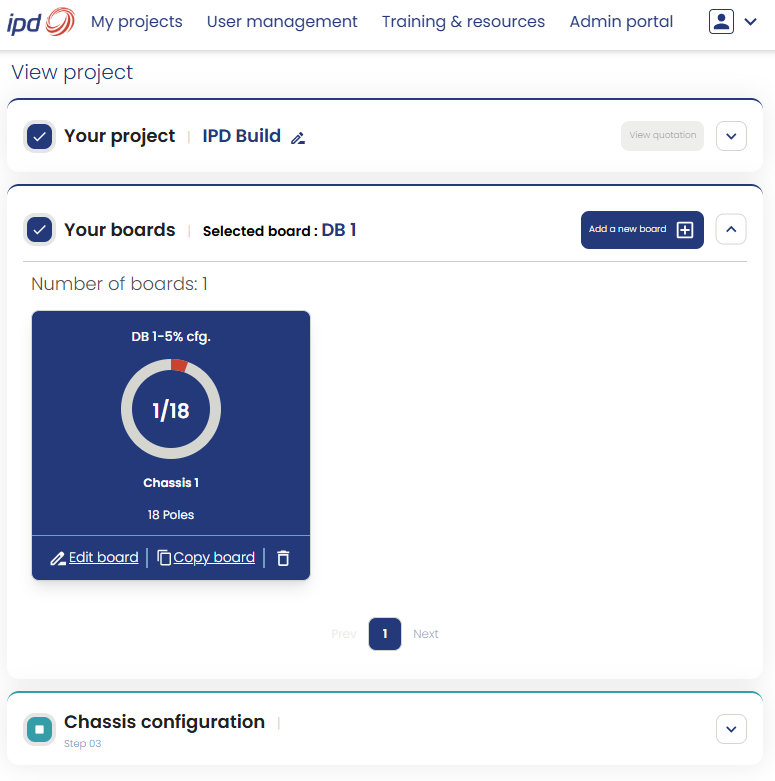

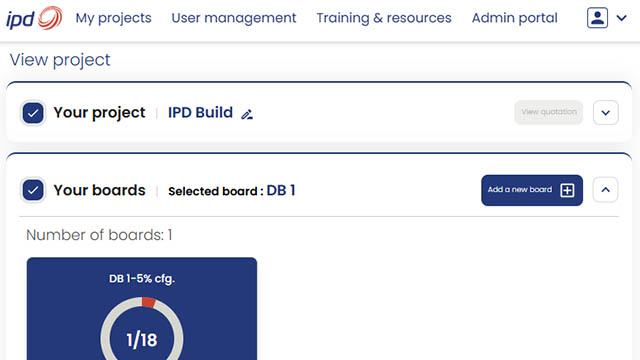

Add custom boards to the project

Get instant access to drawings and pricing

For any enquiries about ipd Build, contact Customer Service.
