Specifications

Product Type	Extension Socket
Brand	IPD
Series	EU Series
Application	Industrial power distribution, construction sites, manufacturing plants and outdoor electrical installations
No. of Phases	1 phase
Plug Type	6h earthing position
Rated Current	63 A
Rated Voltage	230 VAC/VDC
No. of Switching Poles	2
With Neutral Conductor	Yes
With Switch	No
Colour	Blue
Earthing Pin Position	6h
Gland Entries	32 mm maximum cable diameter
Gland Style	Clamp
Material	Thermoplastic PA 6
Max. Cable Size	6 - 16 mm²
No. of Pins	3 Pin
Pin Type	Round
Depth	Ø 77 mm
Length	260 mm
Weight	0.8 kg
IP Rating	IP67
Standards and Approvals	IEC 60309-2
Certifications	CE

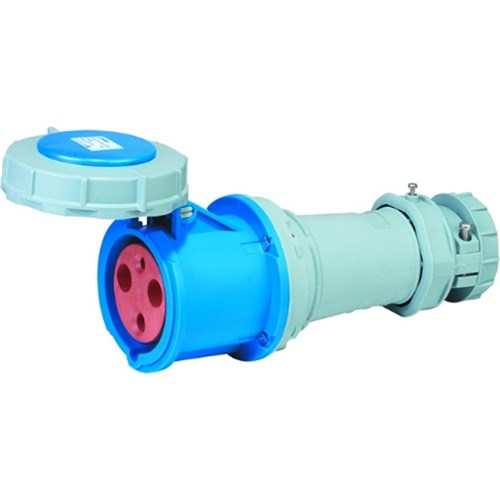

IPD EU67ES363 Extension Socket 3 63A 230VAC/DC IP67
