Specifications

Product Type	Extension Socket
Brand	IPD
Series	EU Series
Application	Industrial power distribution, construction sites, manufacturing plants and outdoor electrical installations
No. of Phases	3 phase
Plug Type	6h earthing position
Rated Current	125 A
Rated Voltage	400 VAC/VDC
No. of Switching Poles	3
With Neutral Conductor	No
With Switch	No
Colour	Red
Earthing Pin Position	6h
Gland Entries	38 mm maximum cable diameter
Gland Style	Clamp
Material	Thermoplastic PA 6
Max. Cable Size	25 - 35 mm²
No. of Pins	4 Pin
Pin Type	Round
Depth	Ø 90 mm
Length	300 mm
Weight	1.5 kg
IP Rating	IP67
Standards and Approvals	IEC 60309-2
Certifications	CE

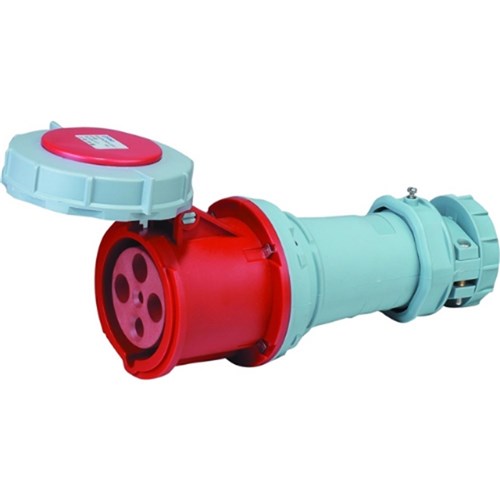

IPD EU67ES4125 Extension Socket 4 125A 400VAC/DC IP67
