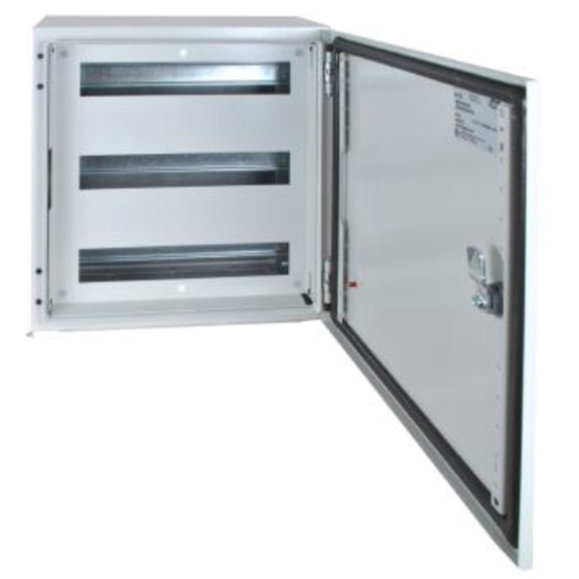

IPD HMSB404020G Hi-Base Metal Enclosure Mild Steel 400W 400H 200D Grey IP66 Single Door (3) 15 DIN -Module

Product Code: HMSB404020G

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Hi-Base Metal Enclosure
Brand IPD
Colour Grey
Degree of Protection IP66
Depth 200 mm
Door Type Single
Height 400 mm
Material Mild Steel
Mounting Type Wall
Number of Hinges 2
Number of Locks 1
Number of Modules (3) 15 DIN
Number of Rows 3
Rated Operational Voltage 1000 V
Usable Internal Space 350 mm W x 350 mm H x 179 mm D
Width 400 mm

Documents

IPD Product Catalogue V17

CAD Blocks & Dimensions
