Specifications

Product Type	MCCB Chassis
Brand	IPD
Application	Use with ABB MCCB-XT1
Busbar Pitch	25 mm
Location of Connection	Double Sided
No. of Phases	3-phase
Rated Current (In)	630 A
Rated Short Time Withstand Current (Icw)	36 kA
Nominal Voltage	~690 V AC (based on MCCB rating)
No. of Poles	24P
IP Rating	IP2X
Standards and Approvals	AS/NZS 61439.1:2016

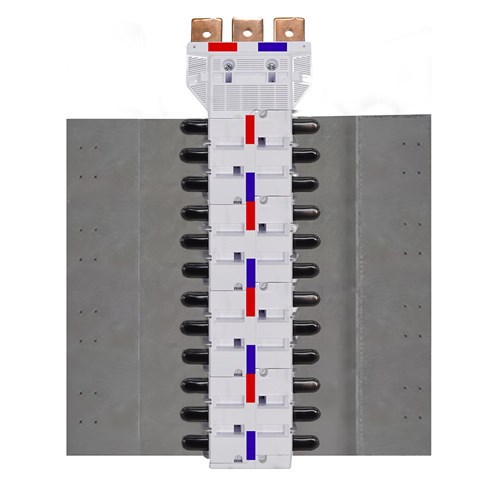

IPD NY63XT1SD24 Nybus MCCB Chassis 24-P 630A Single Feed Double Sided Feed XT1 For: ABB MCCB-XT1
