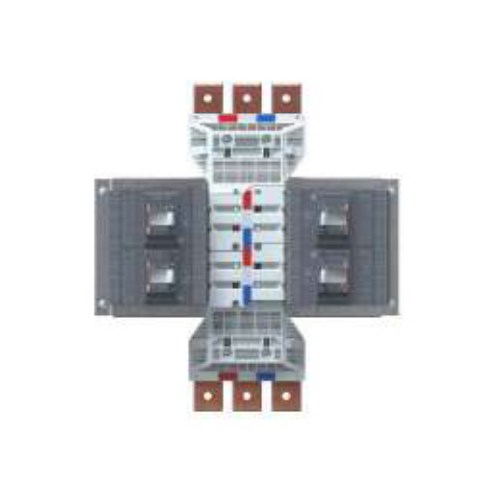

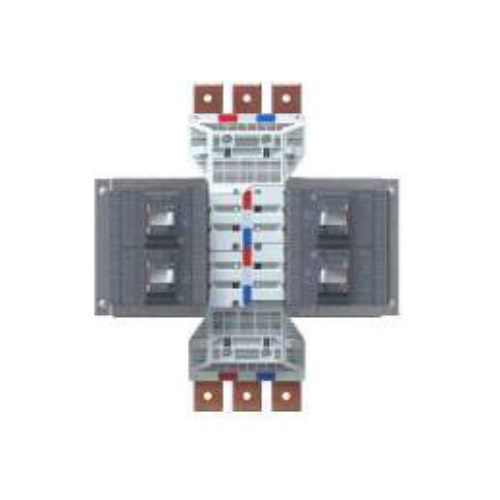

IPD NY80XT1SD06 Nybus MCCB Chassis 6-P 800A Single Feed Double Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY80XT1SD06

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type MCCB Chassis
Brand IPD
Busbar Cross Section 8 x 40 sq-mm
Feed Type Single Feed Double Sided
Frame Size XT1
Number of Poles 6
Rated Current 800 A
Rated Short Time Withstand Current 50 kA
Standards and Approvals AS/NZS 61439.1:2016
Suitable For Use With ABB MCCB-XT1

Documents

IPD Product Catalogue V17
