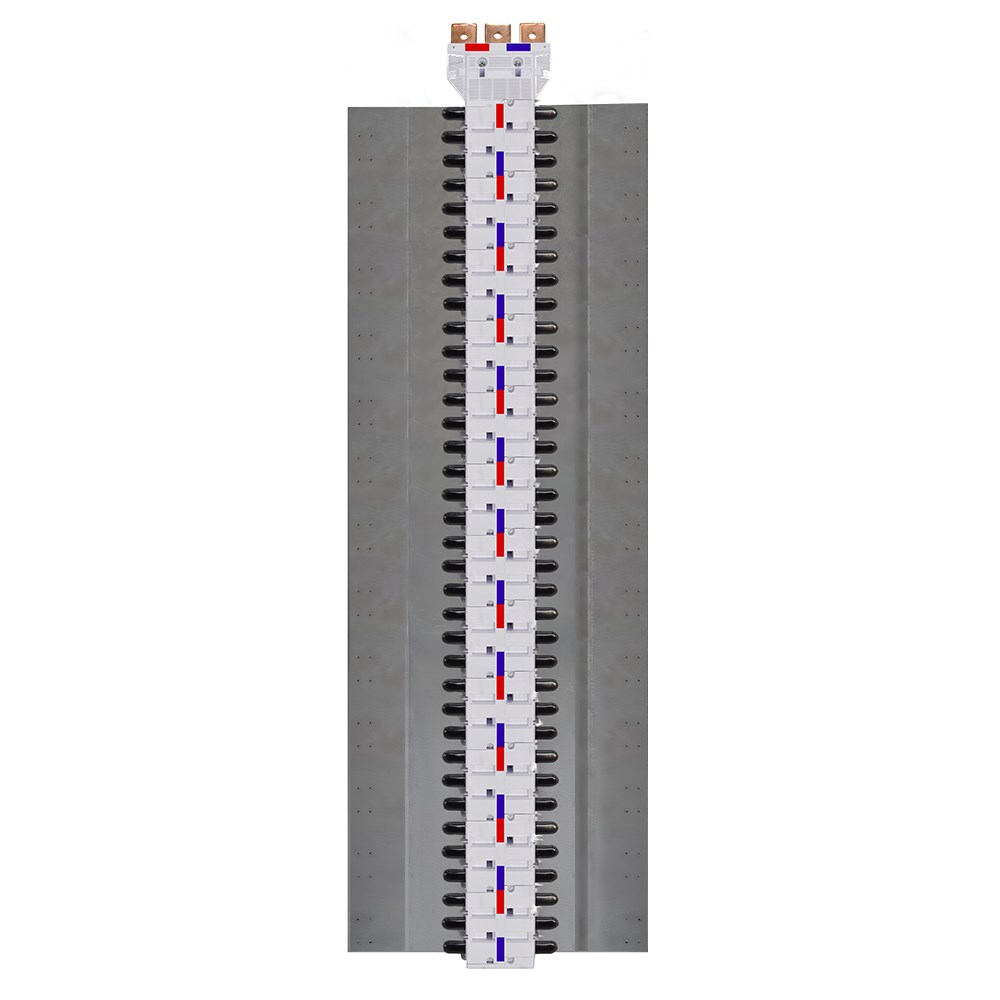

IPD NY80XT1SD72 Nybus MCCB Chassis 72-P 800A Single Feed Double Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY80XT1SD72

1

Specifications

Product Type	MCCB chassis
Brand	IPD
Series	NYBUS
Application	MCCB chassis / busbar system
Location of Connection	Single feed, Double sided
No. of Phases	3 phase
Rated Current (In)	800A
Short Circuit Withstand	65 kA at 1s
Nominal Voltage	415 V
No. of Poles	72P
Depth	87.5 mm
Height	1077.4 mm
Width	390 mm
IP Rating	IP2X
Standards and Approvals	AS/NZS – 61439

Documents

IPD Product Catalogue V17
