Specifications

Product Type	Auto-Switching Socket
Brand	IPD
Series	W66
Application	Industrial power distribution and weatherproof electrical installations
No. of Phases	1 phase
Suitable For	W66SP310
Rated Current	10 A
Rated Voltage	250 VAC/VDC
No. of Switching Poles	2
With Neutral Conductor	Yes
With Switch	Yes - automatic
With Base	Back box included
Back Box Included	Yes
Cable Cross Section	6 sq-mm
Colour	Light grey
Cover Style	Light Grey
Cover Type	Light grey cover
Gland Entries	1 x M32, 2 x M25
Material	Polycarbonate
Max. Cable Size	6 mm²
No. of Pins	3 Pin
Pin Type	Flat
Depth	91 mm
Height	101 mm
Width	101 mm
IP Rating	IP66
Standards and Approvals	AS3112
Certifications	RCM

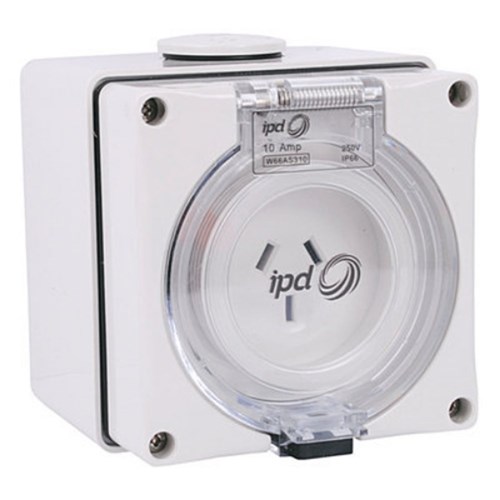

IPD W66AS310 Auto Switching Socket 3 Flat-Pin 1-Ph 10A 250VAC/DC IP66 Polycarbonate
