Specifications

Product Type	Straight Plug
Brand	IPD
Series	W66
Application	Industrial power distribution and weatherproof electrical installations
No. of Phases	3 phase
Rated Current	10 A
Rated Voltage	500 V AC
No. of Switching Poles	4
With Neutral Conductor	Yes
Cable Cross Section	6 sq-mm
Colour	Clear / orange
Cover Style	Clear/Orange
Gland Entries	M25
Gland Style	Small Body
Material	Polycarbonate
Max. Cable Size	6 mm²
No. of Pins	5 Pin
Pin Type	Round
Length	187 mm
Width	Ø 78 mm
IP Rating	IP66
Standards and Approvals	AS3123
Certifications	Energy Safe Victoria compliance

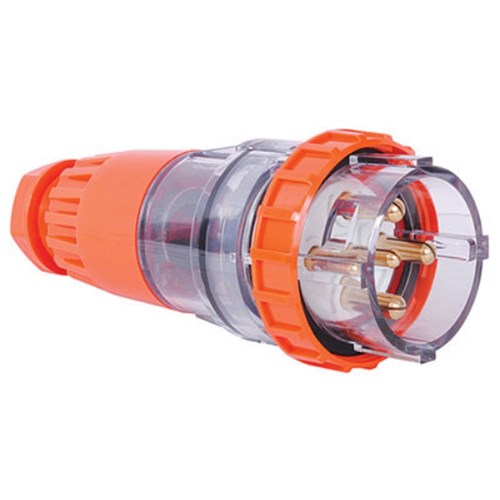

IPD W66SP510 Straight Plug 5 Round-Pin 3-Ph 10A 500VAC/DC IP66 Polycarbonate
