Specifications

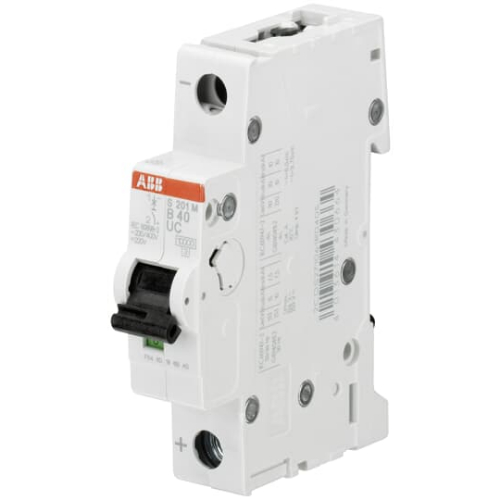

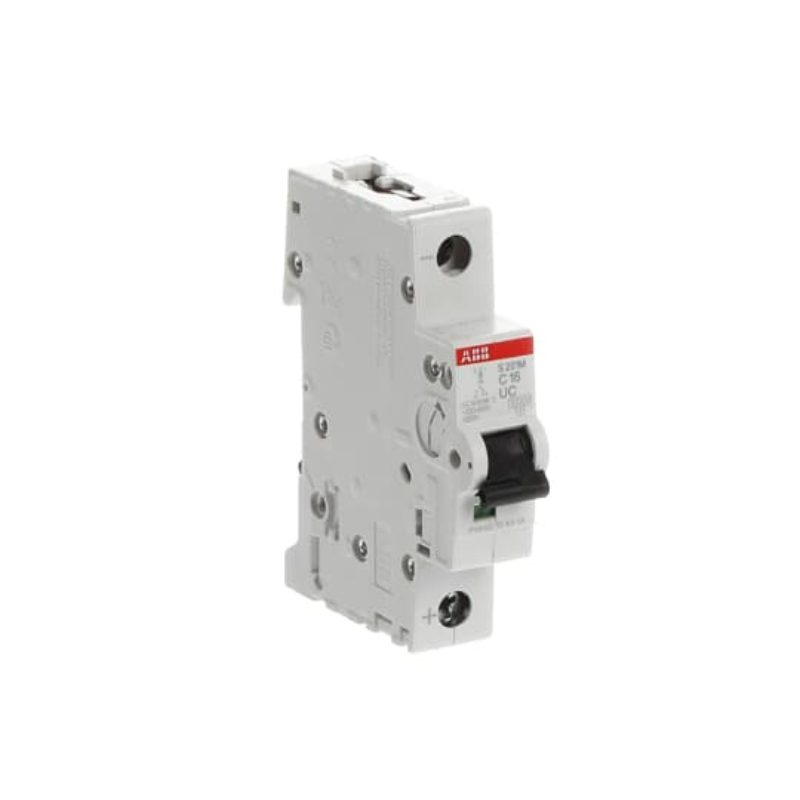

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200MUC
Application	Commercial and Industrial
Rated Cross-Section	10 sq-mm Top, 10 sq-mm Bottom
Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Insulation Voltage (Ui)	484 V
Power Loss	2.01 W
Rated Current	16 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	10 kA
Rated Voltage	230/240 VAC
Trip Curve	C
Terminal Type	Screw Clamp
Cable Cross Section	35 sq-mm Top, 35 sq-mm Bottom
Housing Colour	RAL 7035 Grey
Housing Material	Insulation group I, RAL 7035
Mounting Type	DIN Rail
Tightening Torque	2.8 N-m
Depth	69 mm
Height	85 mm
Width	17.5 mm
Pole Width	17.5 mm
Pollution Degree	2
IP Rating	IP20
Standards and Approvals	AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
